NIFE-106-A02
NEXCOM
SKU: 57970700

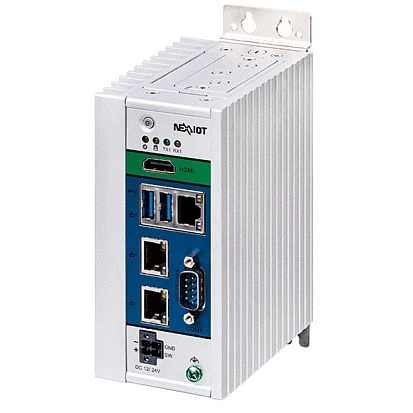

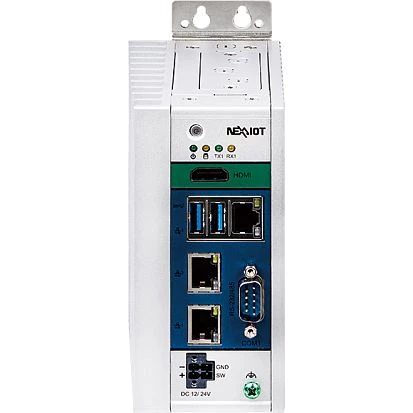

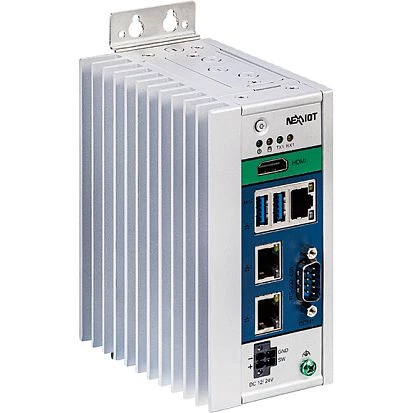

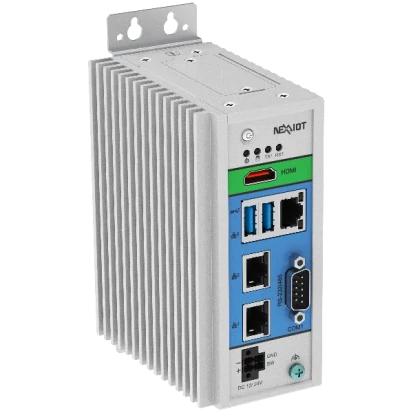

Embedded Automation System, Intel N97 2.0GHz CPU, 8GB LPDDR5 RAM, 64GB eMMC, 1xHDMI, 3x2.5GbE LAN, 2xUSB 3.2, 1xUSB Type-C DP/PD, 2xRS232/485 2.5KV isolation, 8-bit DIO, 1xFieldbus slot, 1xMini-PCIe, 1xM.2 2242/3052 Key-B, 12-24VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
Yes
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/485
2
USB Total
3
USB v3.x
3
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M, 3052 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Battеry Status, Power LED, TX LED, RX LED
Controls
On/Off
Connectors
Connectors

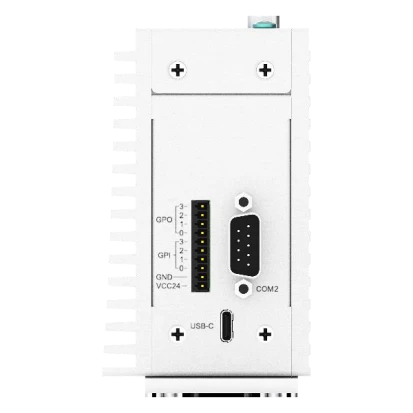

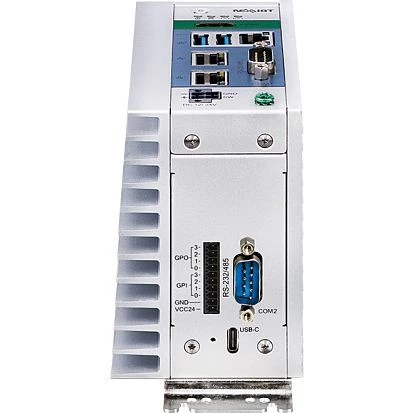

2xDB9, HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block), DIO (terminal block), USB type C
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows IoT Enterprise 10, Linux kernel 4.x, Windows 11
Dimensions and weight
Width
66.5 mm
Height
130 mm
Depth
100 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Vibration
Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
eMMC: 50G, half sine, 11ms, IEC60068-27
Standards and Certifications
Certifications
CE, FCC Class A
Safety
LVD
Dimensions
Net Weight
1.4 kg
Gross Weight
1.8 kg
