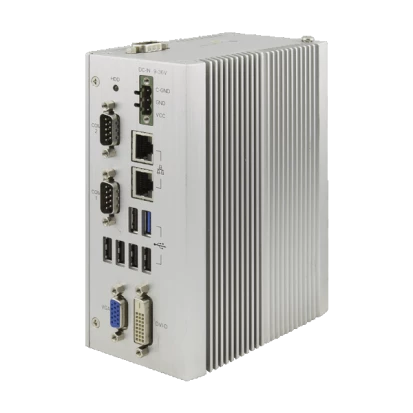

ARES-530WT-E3845
Arbor
SKU: 57847100
Fanless DIN-Rail Embedded PC, Intel Atom E3845 CPU, 4GB DDR3L WT RAM, DVI-D/VGA, 2xGbE LAN, 1xUSB 3.0, 5xUSB 2.0, 2xCOM, 1x8-bit DIO, 2xmSATA, 1xMiniCard Half-Size, Audio, 9-36VDC-In, -40..85C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Socket
FCBGA1170
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422
1
RS-422/485
1
USB Total
6
USB 2.0
5
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
mSATA
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

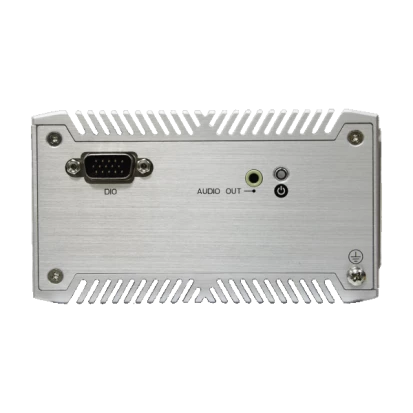

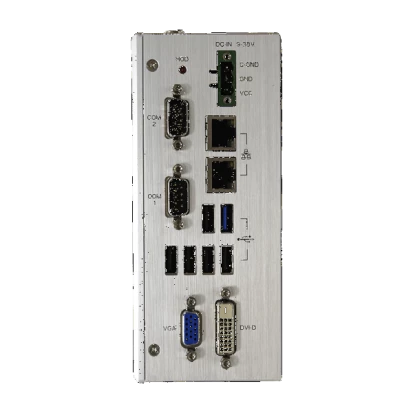

2xDB9, DB15 VGA, 2xRJ45 Ethernet, 6xUSB, Line Out, 1xDB15 DIO, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
13.5 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
160 mm
Height
70 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Vibration
5~500Hz 3G rms X,Y,Z axis w/SSD, according to IEC 68-2-64
Shock
40G peak acceleration (11 m sec. duration), operation; 60G peak acceleration (11 m sec. duration), non operation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.65 kg
Gross Weight
2 kg
