NIFE-106-A01
NEXCOM
SKU: 57970800

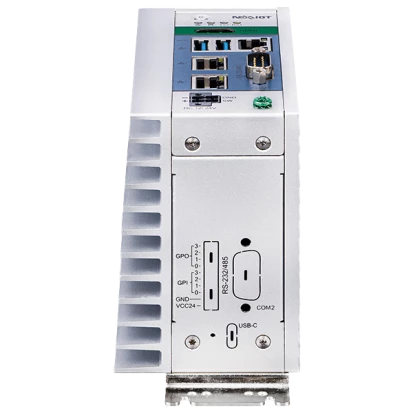

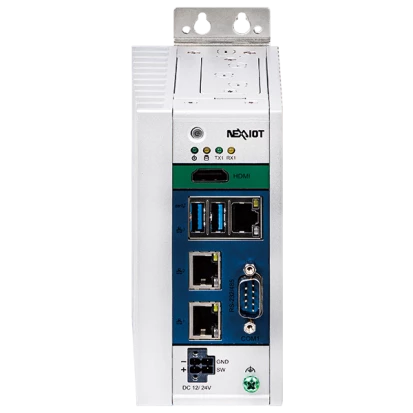

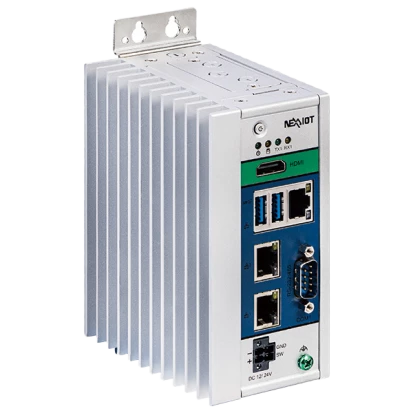

Fanless Fieldbus Box-PC NIFE-106, Intel N97 2.0GHz CPU, 8GB LPDDR5 RAM, 64GB eMMC, 1xHDMI, 3x2.5GbE LAN, 2xUSB 3.2, 1xRS232/485 2.5KV isolation, 12/24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
Yes
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
1
RS-232/485
1
USB Total
2
USB v3.x
2
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
130 mm
Height
66.5 mm
Depth
100 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Dimensions
Net Weight
1.4 kg
Gross Weight
1.8 kg
