NIFE-105W
NEXCOM
SKU: 56327900

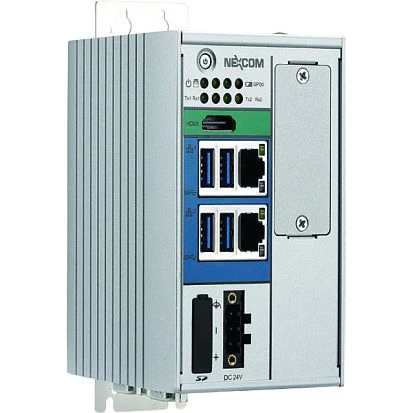

Industrial Fieldbus Embedded Box PC NIFE105W, Intel Atom x5-E3930 1.8 GHz, 4GB DDR3L RAM, 16GB eMMC, 1x HDMI, 2xGbE LAN, 2xRS232/422/485 support 2.5KV isolation, 4xUSB, 1xFBI Slot, 24V DC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall, Pole Mount
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x5-E3930
Socket
FCBGA1296
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
Soldered
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 500
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
SD Slots
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Battеry Status, Power LED, LAN LED, TX LED, RX LED
Controls
On/Off
Connectors
Internal Ports
USB 2.0, 10-pin RS-232, 10-pin GPIO
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, SD card slot
System Power Input
Input Voltage DC
19..28 V
Power Consumption
60 W
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
78.2 mm
Height
120 mm
Depth
100 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Vibration
2G
Shock
50G
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.2 kg
Gross Weight
1.6 kg
