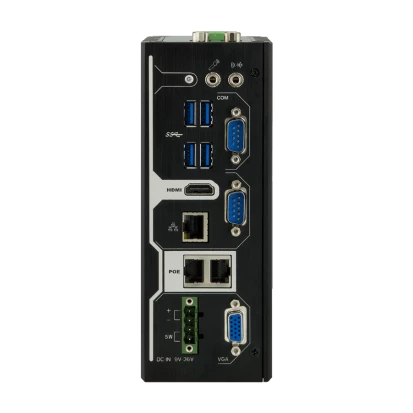

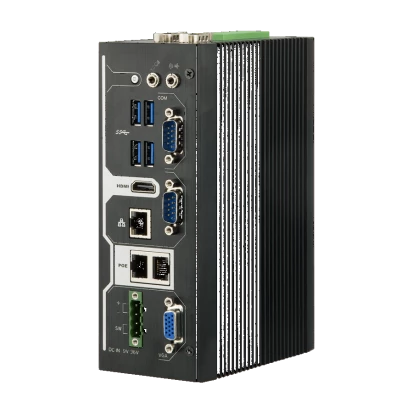

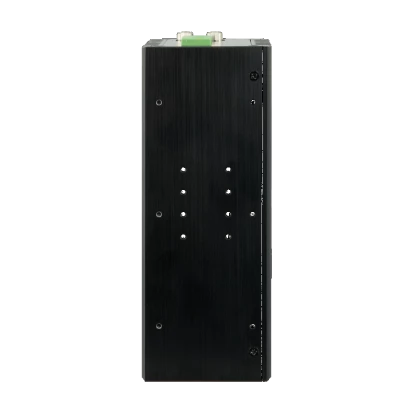

ARES-5310-Series
Arbor
SKU: 57843900
Fanless Din-Rail Embedded PC, Intel Atom/Celeron CPU, Up to 8GB DDR3L RAM, 64GB eMMC, HDMI/VGA, 1xPoE GbE LAN, 2xGbE LAN, 4xUSB 3.0/2.0, 4xCOM, 8-bit DIO, 32-bit DIO, 2xMiniPCIe, SIM, 1xM.2, 9-36VDC-In, -40..70C, R1.2
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Socket
FCBGA1296
CPU Support Type
Atom, Celeron
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
32
Digital Input
Isolation DIO
Yes
Drive interfaces
M.2
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 4xUSB, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
65 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
180 mm
Height
70 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ eMMC, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Automotive
e13 Mark
Dimensions
Net Weight
1.7 kg
Gross Weight
2.1 kg
