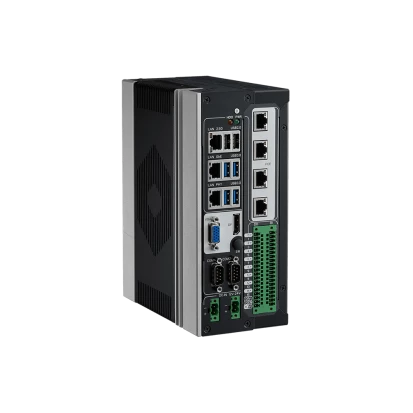

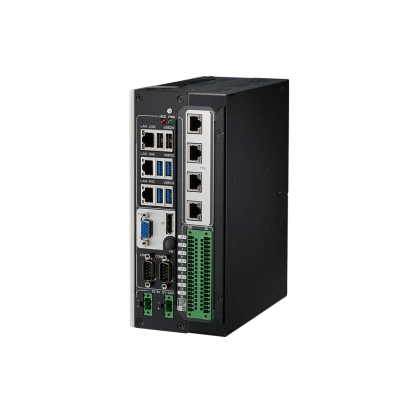

ARES-1983H-MV
Arbor
SKU: 57843400
Embedded Din-Rail Box PC, Ext. Fan, Intel 12/13th Gen Core i3/i5/i7 CPU, H610E Chipset, Up to 32GB DDR5 RAM, DP/VGA, 1x2.5GbE LAN, 2xGbE LAN, 4xGbE PoE, 4xUSB 3.2, 4xUSB 2.0, 2xCOM, 32-bit DIO, MiniPCIe, 2xM.2, 1x2.5" Bay, 12-24VDC-In, R1.0
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, VGA
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM, Intel i226-LM
Total Ethernet
7
10/100/1000 Mbit/s
2
2,5 Gbit/s
1
PoE 10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
32
Isolation DIO
Yes
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, 6xUSB, Display Port, DC input (terminal block), DIO (terminal block), 7xRJ45 Ethernet
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
210 mm
Height
55 mm
Depth
90 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ SSD, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.1 kg
Gross Weight
3.7 kg
