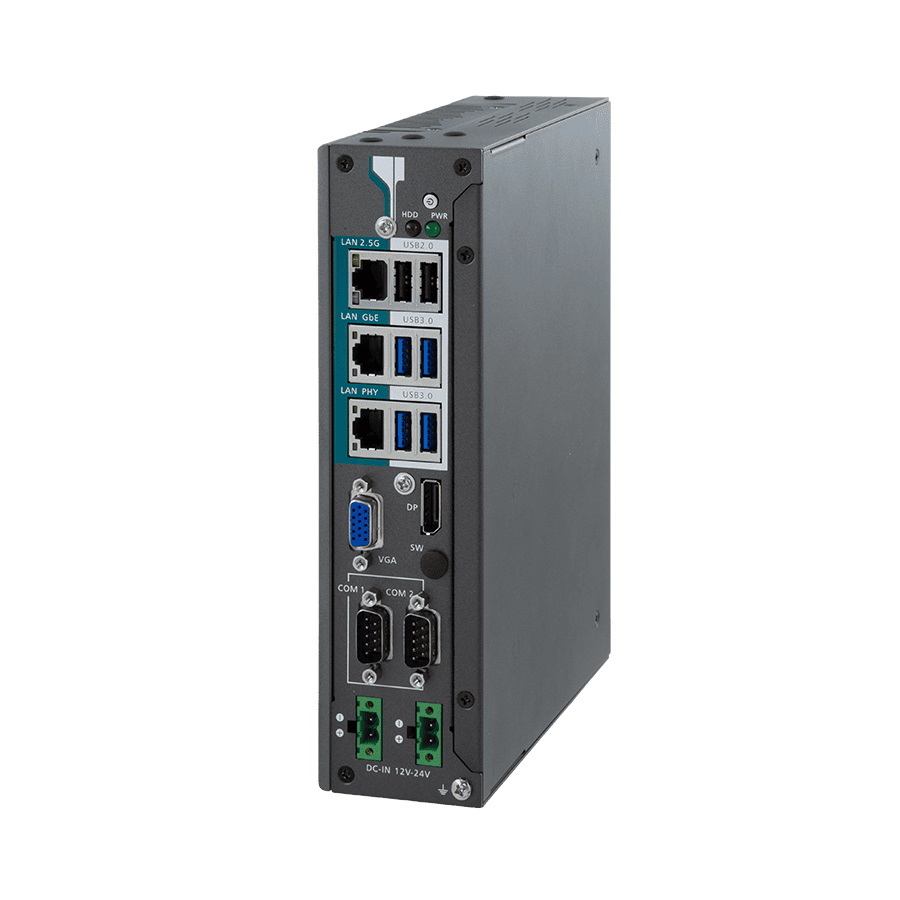

ARES-1983H-FL
Arbor
SKU: 80222300
Fanless Embedded Din-Rail Box PC, Intel 12/13th Gen Core i3/i5/i7 CPU (35W Max), H610E Chipset, Up to 32GB DDR5 RAM, DP/VGA, 1x2.5GbE LAN, 2xGbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2xUSB 2.0 Int., 2xCOM, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 12-24VDC-In, R1.0
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, VGA
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM, Intel i226-LM
Total Ethernet
3
10/100/1000 Mbit/s
2
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Display Port, 2xDC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
80 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
210 mm
Height
55 mm
Depth
164 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
2.5 kg
Gross Weight
3.1 kg
