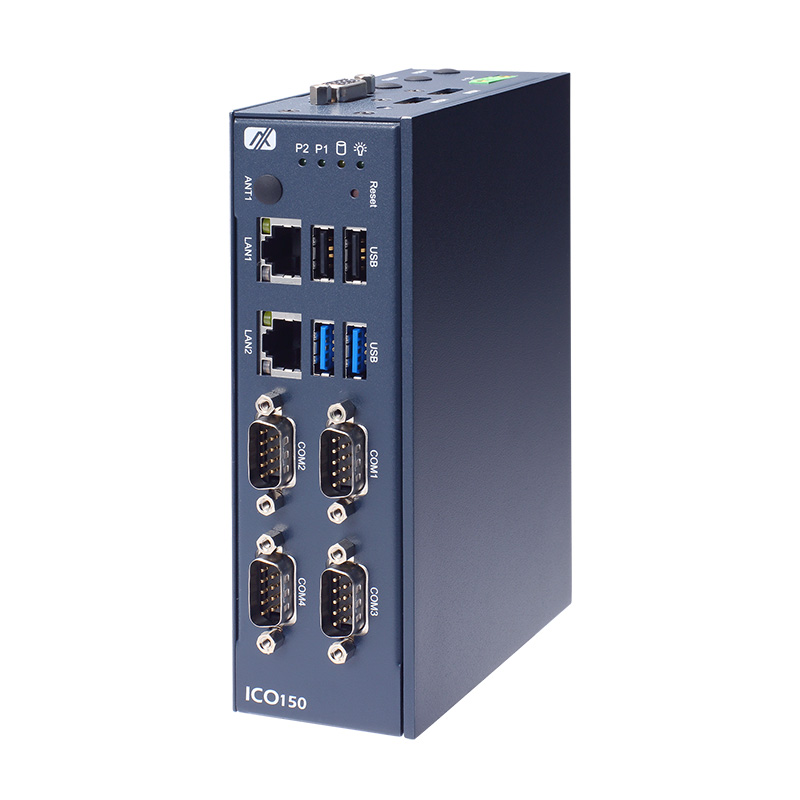

ICO150-x7433-AC
AXIOMTEK
SKU: 80246400
Fanless Din-rail Box PC, Intel Atom x7433RE 1.5GHz CPU, Up to 16GB DDR5 RAM, 1xHDMI, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 4xCOM, 8-bit DIO, 1xFull-Size MiniPCIe (LTE), 1xHalf-Size MiniPCIe (SATA/WiFi), 1xM.2 Key-B+M, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7433RE
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Memory
Form-factor
DDR5
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i226-IT
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
1xReset
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), DB9 DIO
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
155 mm
Height
48 mm
Depth
110 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
3 Grms, 5 to 500Hz, X/Y/Z direction; random, operating
Standards and Certifications
Certifications
CE, FCC Class B
Safety
UL
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
