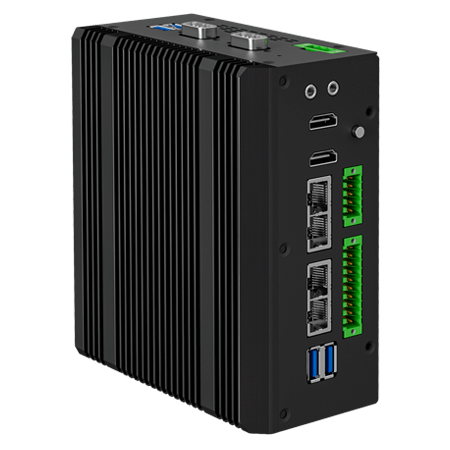

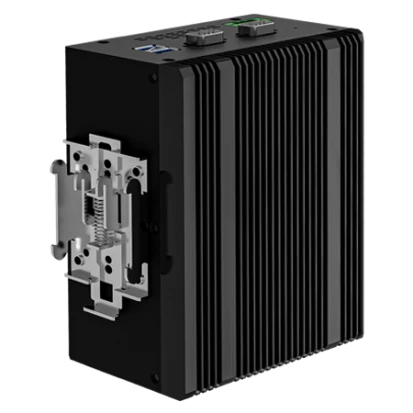

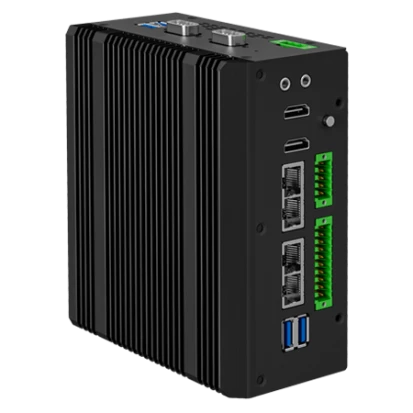

IRDRW500
Winmate
SKU: 80158500
Fanless DIN-Rail Box PC, Intel Core i5-1335U 4.4GHz CPU, 8GB (Up to 32GB) DDR5 RAM, 256GB NVME SSD, 2xHDMI, 4x2.5GbE LAN, 3xUSB 3.2, 1xUSB 2.0, 4xCOM, 16-bit DIO, 1xM.2 Key-B, 1xM.2 Key-E (Hailo-8 or WiFi), Audio, 9-36VDC-in with 120W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1335U
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR5
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
2,5 Gbit/s
4
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB 2.0
1
USB v3.x
3
Digital Input-Output
Channels of DIO
16
Isolation DIO
Yes
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, 2xHDMI, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Ubuntu, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
68 mm
Height
150 mm
Depth
130 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1.5 kg
Gross Weight
2.2 kg
