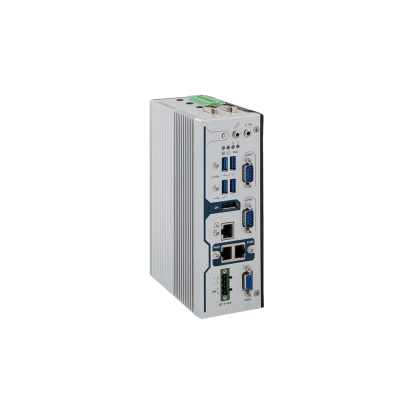

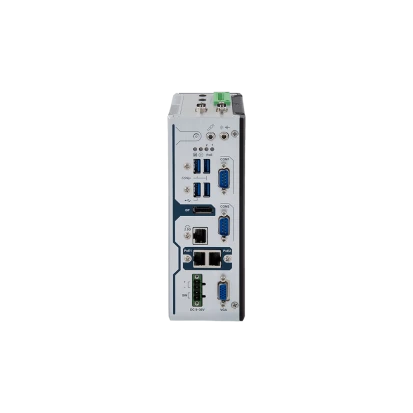

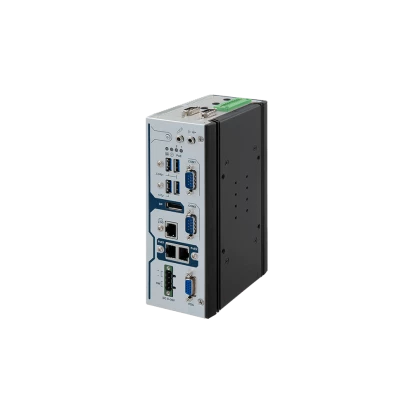

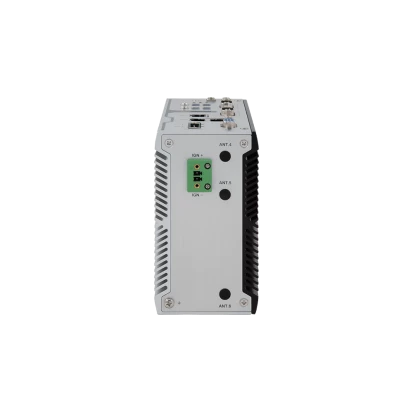

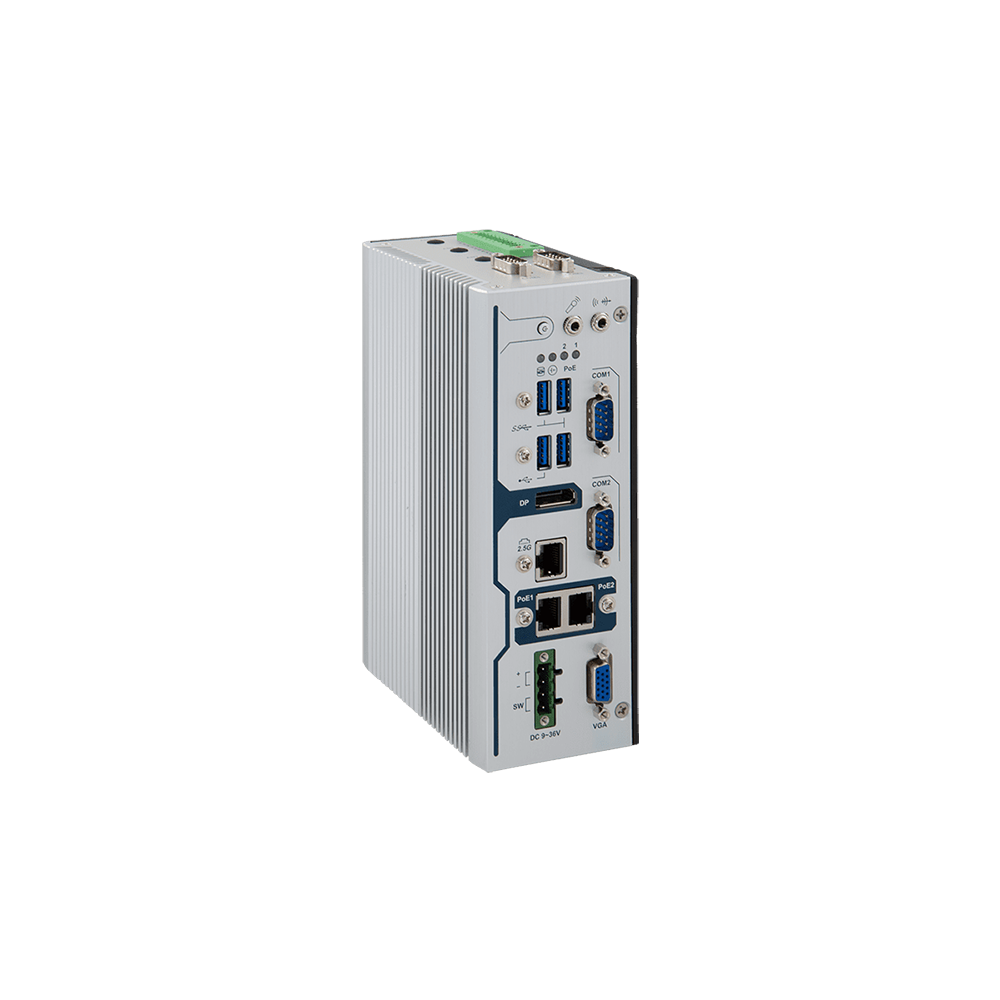

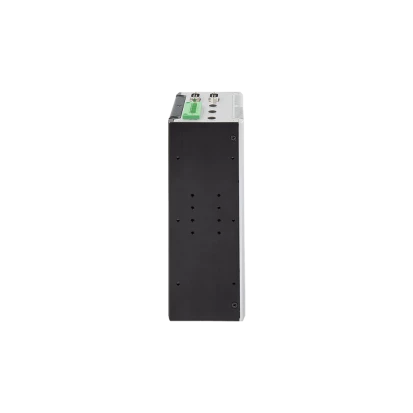

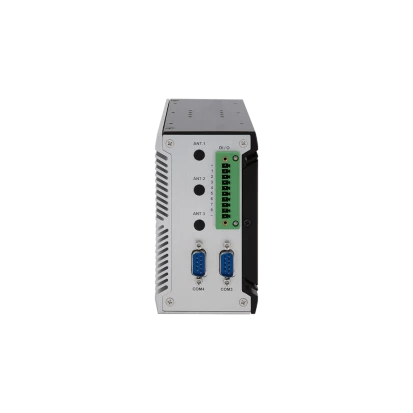

ARES-5320-x6425A
Arbor
SKU: 57845800
Fanless Din-Rail Embedded PC, Intel Atom x6425RE CPU, Up to 32GB DDR4 RAM, 64GB eMMC, DP/VGA, 3x2.5GbE LAN, 3xUSB 3.2, 1xUSB 2.0, 4xCOM, 8-bit DIO, 2xMiniPCIe Full-Size, 1xMiniPCIe Half-Size, SIM, 1x2.5" Drive Bay, 9-36VDC-In, -20..70C, R1.0
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6425RE
Socket
FCBGA1493
Max CPU frequency
1.9 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB 2.0
1
USB v3.x
3
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
mSATA
1
Storage Cage
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED, PoE LED
Connectors
Connectors
4xDB9, DB15 VGA, 3xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
65 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
190 mm
Height
70 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vehicle
E-Mark
Dimensions
Net Weight
1.9 kg
Gross Weight
2.4 kg
