iBPC-N8MP
ICOP
SKU: 80362400
Compact Industrial Edge AI Box PC, NXP i.MX8M Plus 1.6GHz SoC, Up to 8GB LPDDR4 RAM, Up to 128GB eMMC, NPU 2.3TOP/s, HDMI, LVDS Opt., 2xGbE LAN, 2xUSB 3.0, 2xUSB 2.0, 4xCOM, 2xCAN, 13-bit GPIO, MicroSD Slot, 1xMiniPCIe, 1xM.2 Key-M Opt., 12-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop
Type
Fanless
CPU
Processor Installed
NXP i.MX8M Plus Quad
Socket
CPU onboard
Max CPU frequency
1.6 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
mSATA
1
Installed drive
2nd Storage Form-Factor
eMMC
2nd Storage Capacity
128 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off, 1xReset

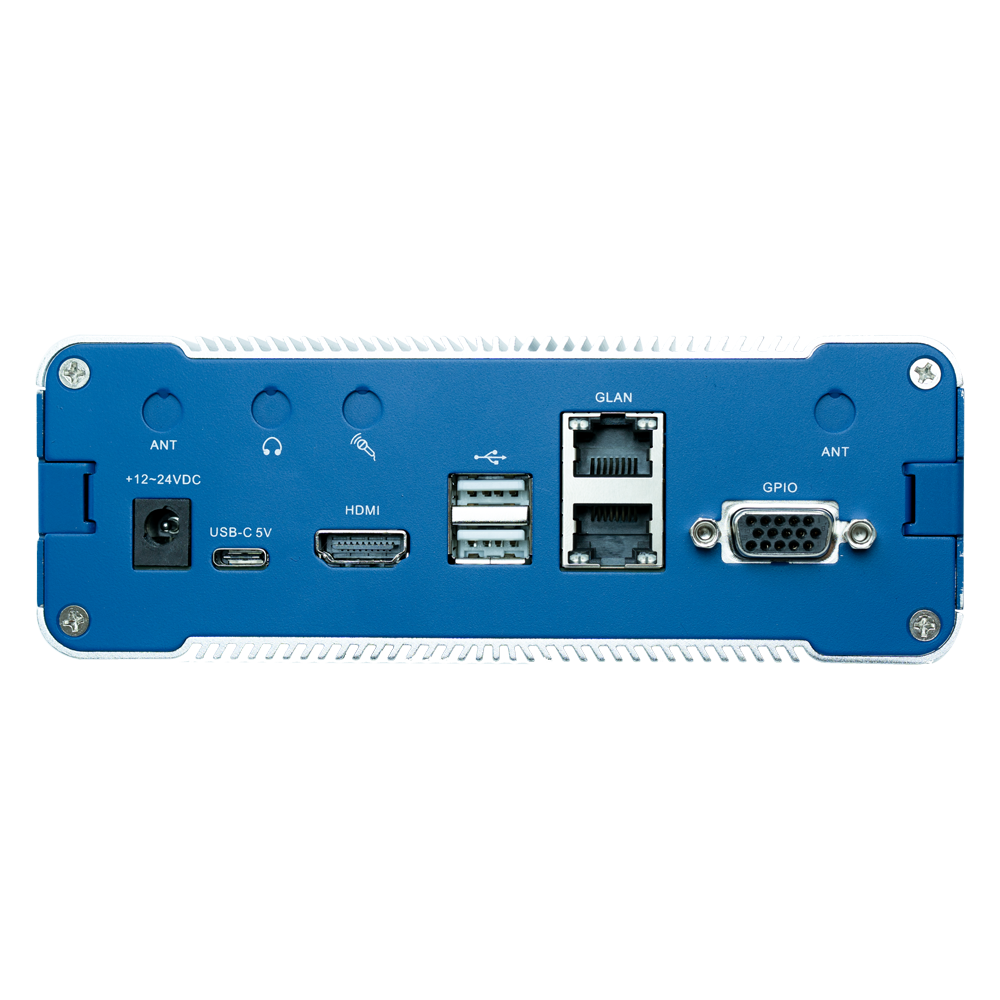

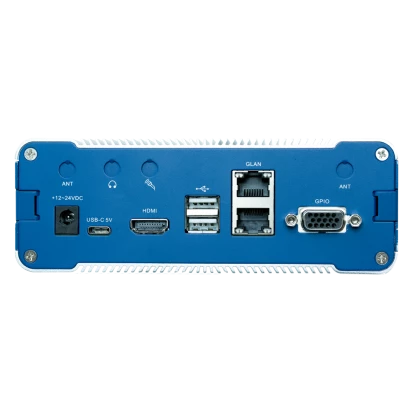

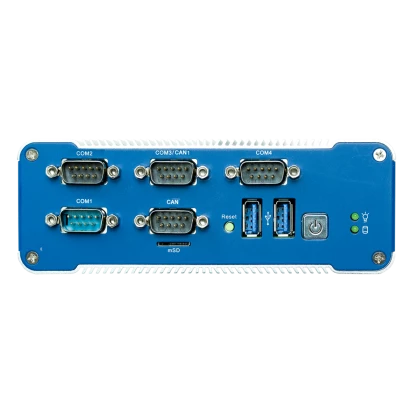

Connectors
Connectors
4xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, DB15 GPIO, MicroSD card slot, DB9 CAN
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
152 mm
Height
54 mm
Depth
104 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
2.4 kg
Gross Weight
3 kg
