QN-ORAX32-A1

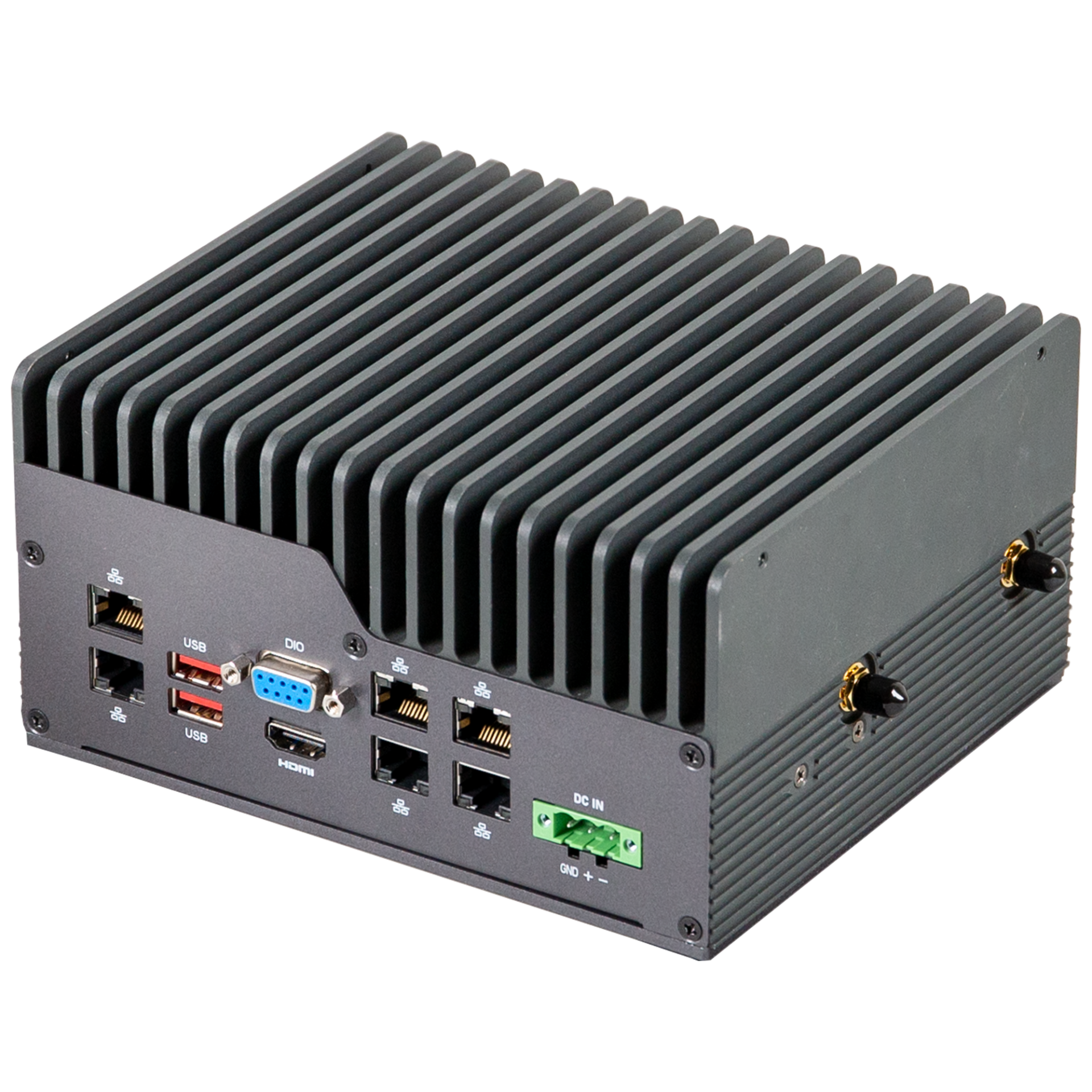

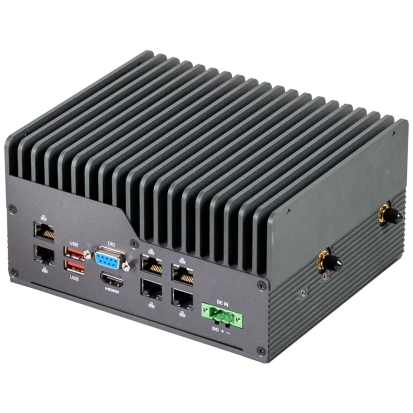

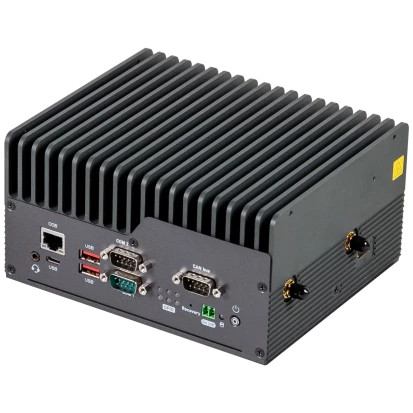

QN-ORAX32-A1

GIGAIPC
SKU: 80289600
Fanless Edge AI Box PC, Nvidia Jetson AGX Orin 8-Core SoC, Ampere 1792-Core GPU, 32GB LPDDR5 RAM, 32GB eMMC, HDMI, 2xGbE PoE LAN, 4xGbE LAN, 4xUSB 3.2, 1xUSB-C 3.2, 2xCOM, 1xCAN, 8-bit GPIO, 2xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 19-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson AGX Orin (8-Core)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR5
Default on Board Memory
32 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1792-cores, 56 Tensor Cores
Interfaces
HDMI
Ethernet
Controller Type
Realtek RTL8111H, Realtek RTL8211F
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
5
USB v3.x
5
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
2
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
4
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3042 B
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, HDMI, 6xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block), DB9 GPIO, USB type C, DB9 CAN
System Power Input
Input Voltage DC
19 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, NVIDIA Jetpack
Dimensions and weight
Width
175 mm
Height
85 mm
Depth
145 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Net Weight
3 kg
Gross Weight
4.1 kg
