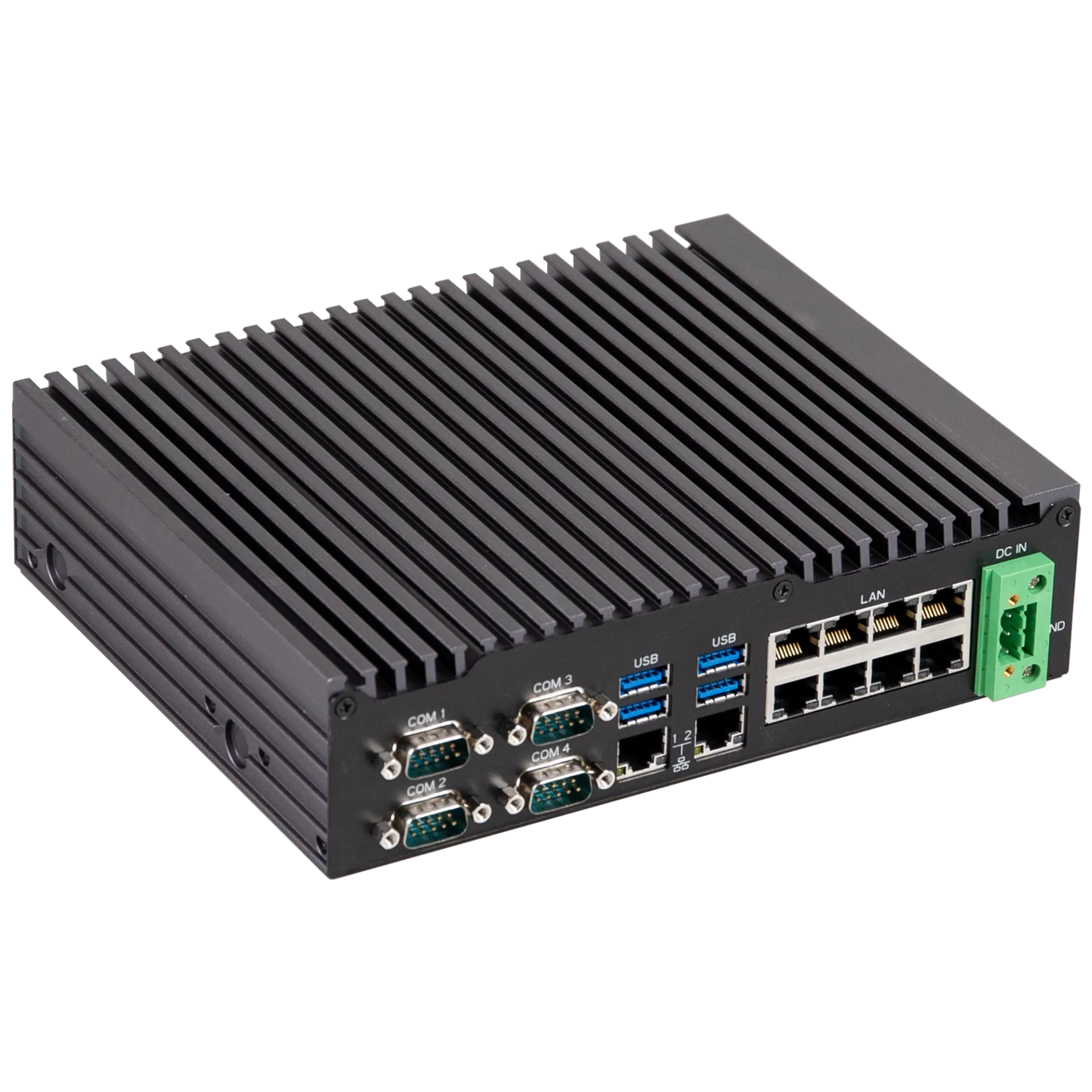

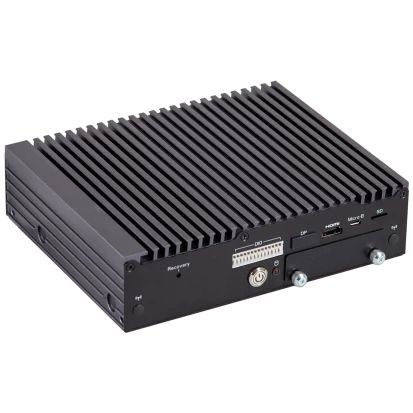

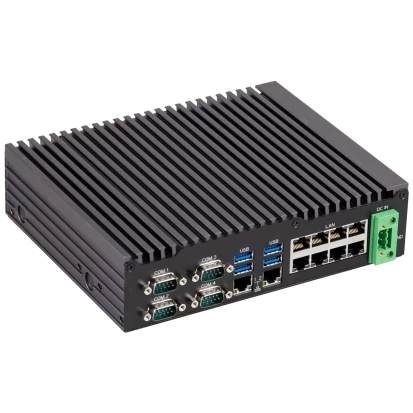

QN-ORNX16GH-A1
GIGAIPC
SKU: 80270700
Fanless Embedded Edge AI Box PC, Nvidia Jetson Orin NX 8-Core SoC, Ampere 1024-Core GPU, 16GB LPDDR5 RAM, HDMI, 8xGbE PoE LAN, 2xGbE LAN, 4xUSB 3.2, 4xCOM, 12-bit GPIO, 1x2.5" Drive Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 54VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (8-Core)
Socket
CPU onboard
Max CPU frequency
2 GHz
Memory
Form-factor
DDR5
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
2
PoE 10/100/1000 Mbit/s
8
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
Channels of DIO
12
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B
Mini-PCIe/Mini Card
1
Mini-PCI
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, HDMI, 4xUSB, DC input (terminal block), DIO (terminal block), 1xMicro USB, 10xRJ45 Ethernet
System Power Input
Input Voltage DC
54 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Linux OS, NVIDIA Jetpack
Dimensions and weight
Width
210 mm
Height
55.2 mm
Depth
169.8 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
3 kg
Gross Weight
4.1 kg
