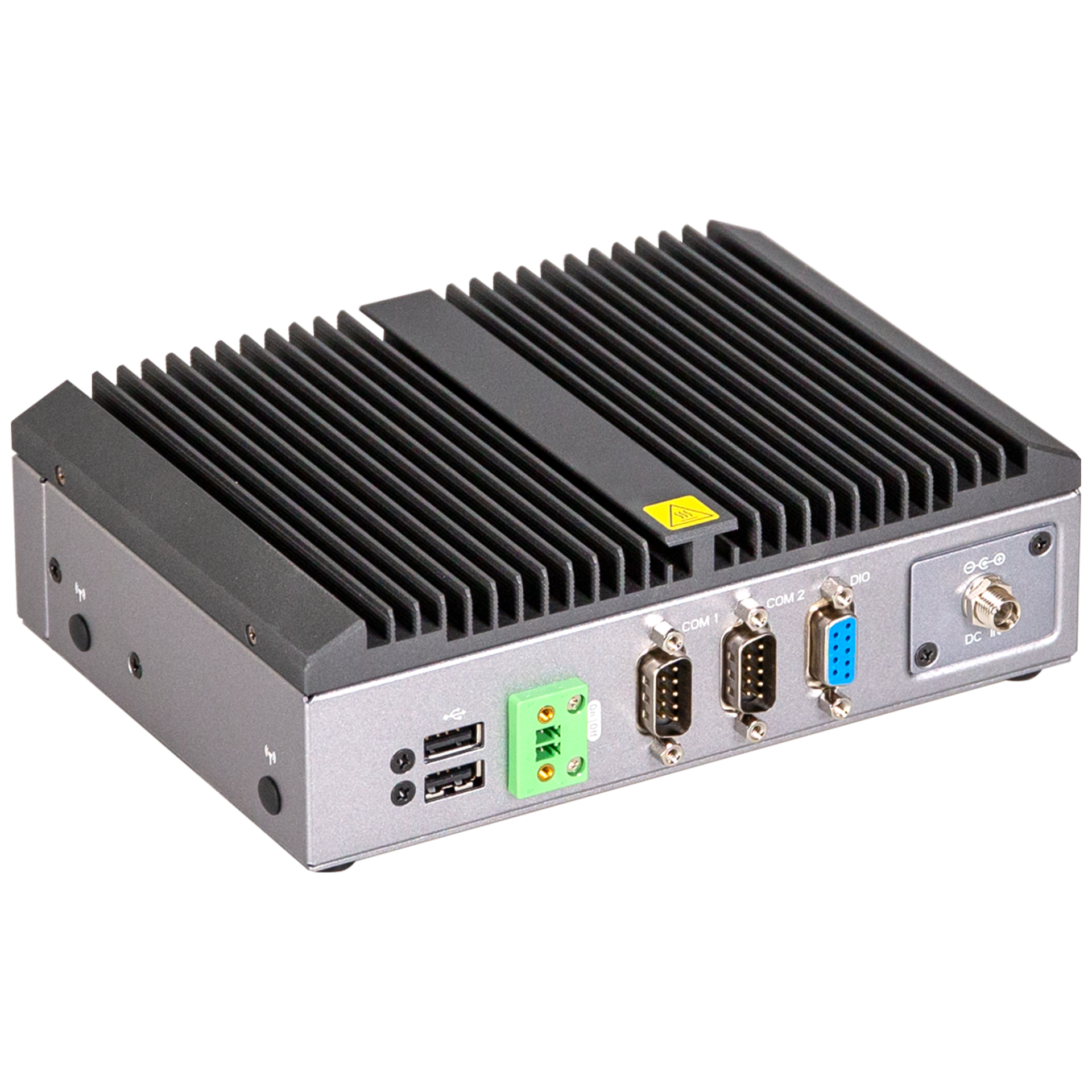

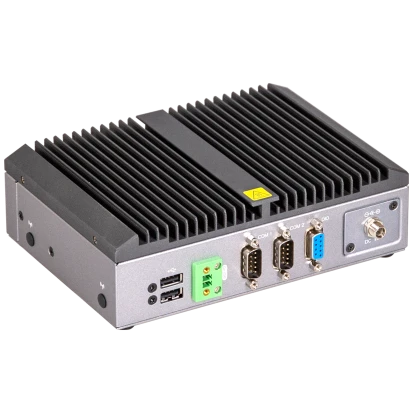

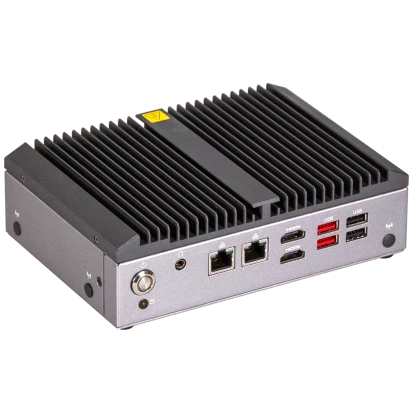

QP-N150A-A2
GIGAIPC
SKU: 80289800
Fanless Embedded Box PC, Intel N150 3.6GHz CPU, Up to 16GB DDR5 RAM, 2xHDMI, 2x2.5GbE LAN, 2xUSB 3.2, 4xUSB 2.0, 2xCOM, 8-bit GPIO, 1x2.5" Drive Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, SIM Slot, TPM2.0, Audio, 12-36VDC-in with 65W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N150
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Memory
Form-factor
DDR5
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i226
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Line Out, DC Input, DB9 DIO
System Power Input
Input Voltage DC
12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
178 mm
Height
52.7 mm
Depth
125 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-64
Dimensions
Net Weight
1.15 kg
Gross Weight
1.5 kg
