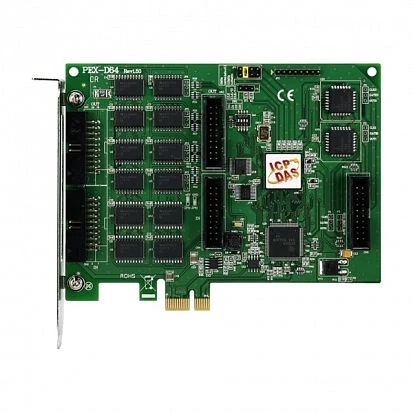

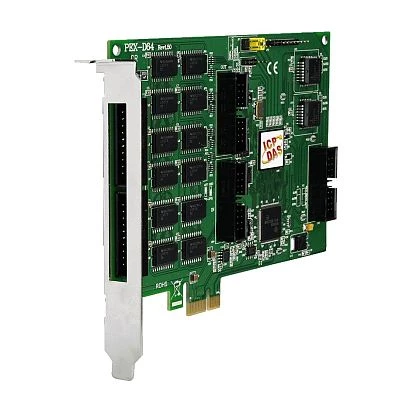

PEX-D64
ICP DAS
SKU: 09002300
PCI Express 64DI/O & 1 Counter/Timer Card
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input-Output
Channels of DIO
64
Digital Input
Total channels of digital input
32
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Number of channels
6
Counter capacity
16 Bit
Max frequency
10 kHz
Digital Output
Total channels of digital output
32
Output voltage
0~5 V
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.12 kg
Gross Weight
0.36 kg
