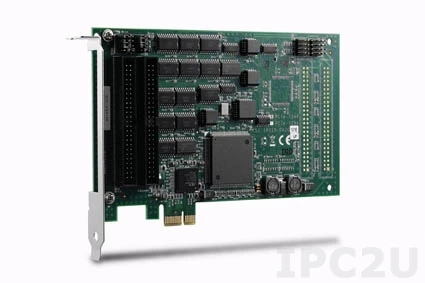

PCIe-7248
ADLink
SKU: 05620200
48-CH Opto-22 Compatible PCI Express DIO Card
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input-Output
Channels of DIO
48
Digital Input
Total channels of digital input
48
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Number of channels
1
Counter capacity
16 Bit
Digital Output
Total channels of digital output
48
Output voltage
0~5 V
Max. load current
24 mA
Connectors
Internal Ports
2x50-pin box header
Software
Operating System Compatibility
Windows Server 2008, Windows 7, Windows 8, Linux OS
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB, AD-Logger
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.12 kg
Gross Weight
0.46 kg
