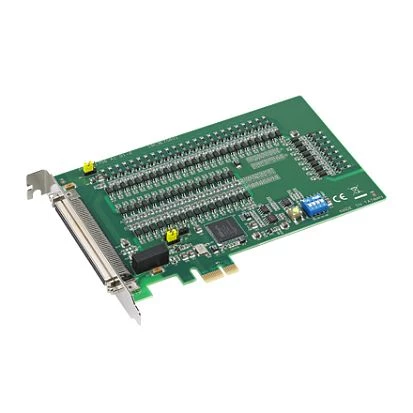

PCIE-1756H-AE
Advantech
SKU: 66473800
64-ch Isolated Digital I/O PCI Express Card
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
32
Isolation of Digital Input
2500 V
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~3 V
Level of Logic "1"
10~30 V
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
5~40 V
Max. load current
500 mA
Connectors
Connectors
100-pin SCSI II Female
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 8, Windows 10
Development Software
LabVIEW, Visual Studio .NET
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.1 kg
Gross Weight
0.21 kg
