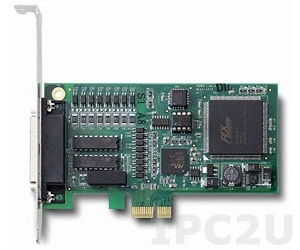

LPCIe-7230
ADLink
SKU: 05108200
PCI Express Adapter, Isolated 16DI, 16DO
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
16
Isolation of Digital Input
2500 V
Level of Logic "0"
0~1.5 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
16
Output voltage
5~35 V
Max. load current
500 mA
Connectors
Connectors
50-pin SCSI II Female
Software
Operating System Compatibility
Windows Server 2003, Windows XP, Windows 7, Linux OS, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB, AD-Logger, DAQBench, DAQPilot
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1 kg
