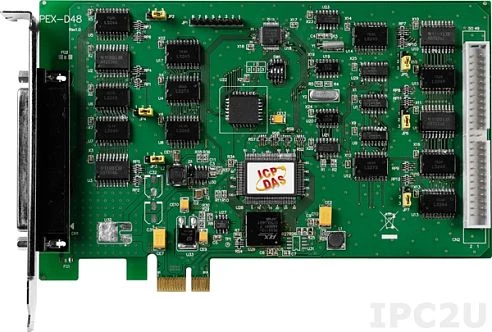

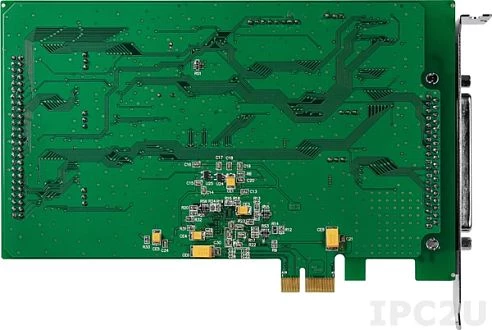

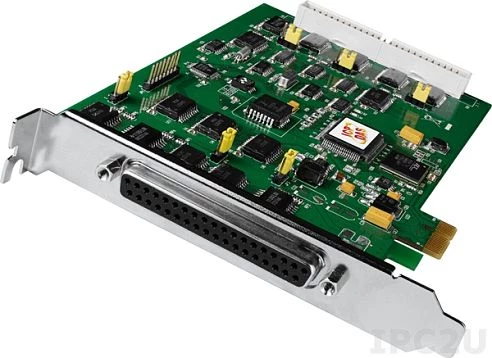

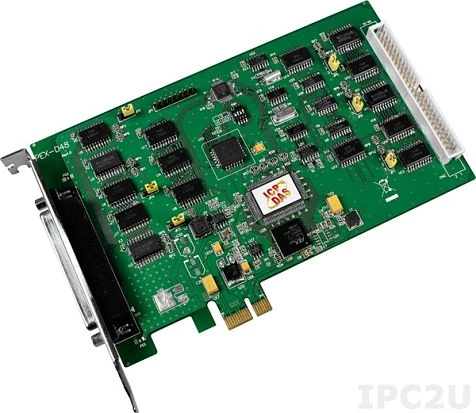

PEX-D48
ICP DAS
SKU: 05637700
PCI Express 48DI/O & 1 Counter/Timer Card
Price on request
Available on order
Available on order
System Architecture
System Bus
PCI-Express x1
Digital Input-Output
Channels of DIO
48
Digital Input
Total channels of digital input
48
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Number of channels
2
Counter capacity
16 Bit
Max frequency
4 kHz
Digital Output
Total channels of digital output
48
Output voltage
0~5 V
Max. load current
64 mA
Connectors
Internal Ports
50-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
