PEX-D96S
ICP DAS
SKU: 06694000

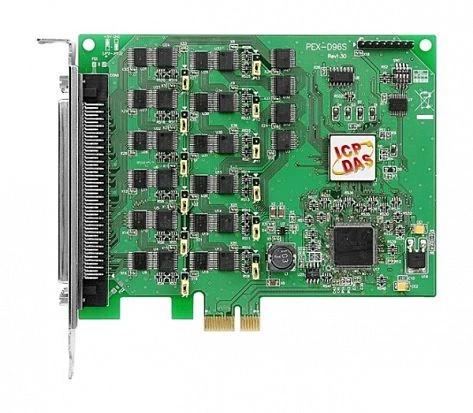

PCI Express 96 Bit OPTO-22 Compatible Digital I/O Board, Low power consumption, Low temperature
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input-Output
Channels of DIO
96
Digital Input
Total channels of digital input
96
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
96
Output voltage
0~5 V
Max. load current
6 mA
Connectors
Connectors
100-pin SCSI II Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.36 kg
Gross Weight
0.36 kg
