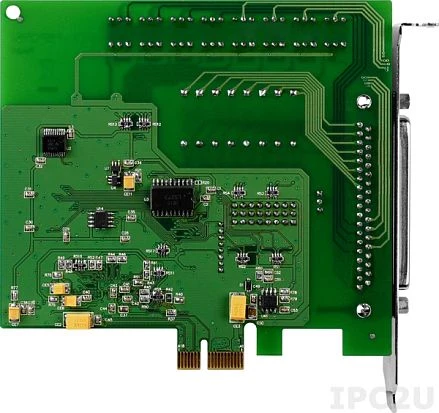

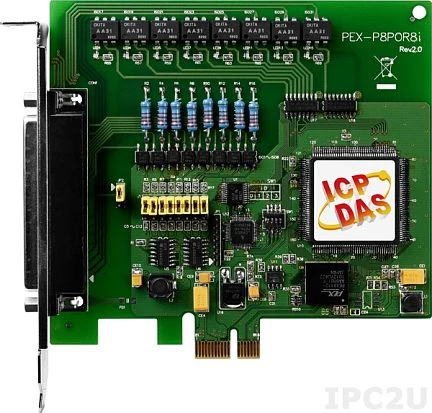

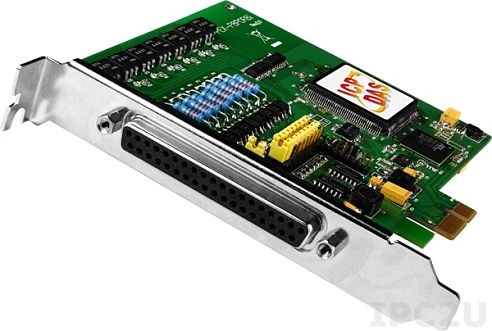

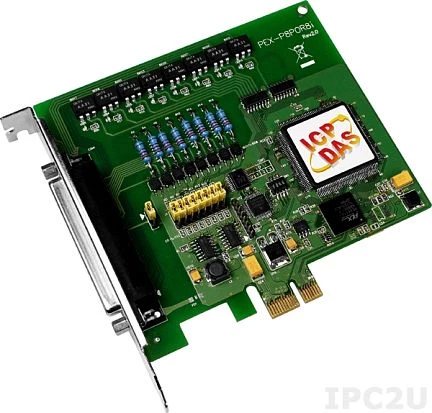

PEX-P8POR8i
ICP DAS
SKU: 05841900
PCI Express X 1 Isolated 8DI, 8 Relay Board
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
8
Isolation of Digital Input
2000 V
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
8
Type
PhotoMos relay
Relay (Form A)
8
Contact rating of relay (Form A)
0.13A@350V AC, 0.13A@350V DC
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.18 kg
Gross Weight
0.4 kg
