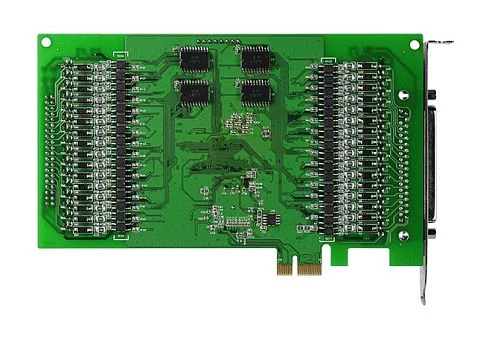

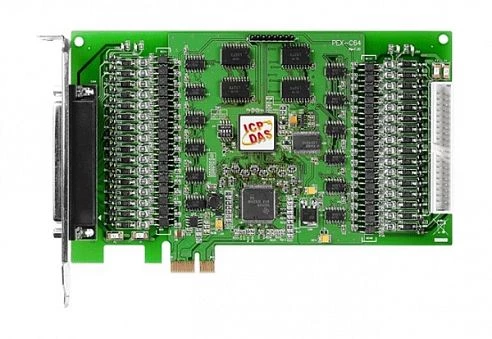

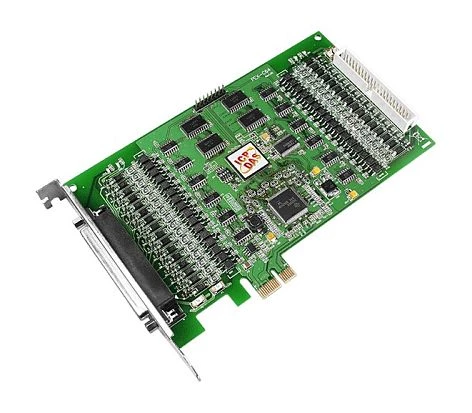

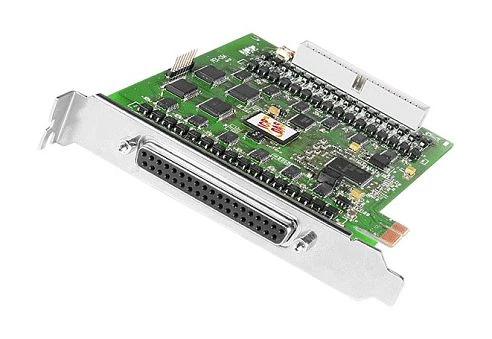

PEX-C64

ICP DAS

SKU: 06505100

PCI Express x 1 Isolated 64 OC DO Card, Adapter CA-4037x1, Cable Socket CA-4002x2

Price on request

System Architecture

System Bus

PCI-Express x1

Digital Output

Total channels of digital output

Type

Open collector

Sink/Source

Sink

Output voltage

0~30 V

Max. load current

100 mA

Connectors

Internal Ports

40-pin box header

Connectors

DB37 Female

Cables

Included Cables

CA-4037B

Software

Operating System Compatibility

Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista

Development Software

LabVIEW, BCB, Delphi, VC, VB

Operating Conditions

Operating Temperature

0..60 °C

Dimensions

Net Weight

0.25 kg

Gross Weight

0.48 kg

System Architecture

System Bus

PCI-Express x1

Digital Output

Total channels of digital output

Type

Open collector

Sink/Source

Sink

Output voltage

0~30 V

Max. load current

100 mA

Connectors

Internal Ports

40-pin box header

Connectors

DB37 Female

Cables

Included Cables

CA-4037B

Software

Operating System Compatibility

Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista

Development Software

LabVIEW, BCB, Delphi, VC, VB

Operating Conditions

Operating Temperature

0..60 °C

Dimensions

Net Weight

0.25 kg

Gross Weight

0.48 kg
