PEX-P64-24V
ICP DAS
SKU: 06561100

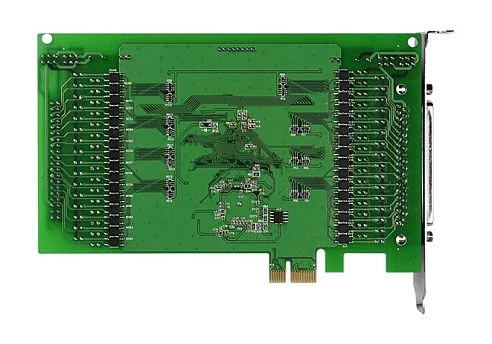

PCI Express x 1 Isolated 64DI Board, Adapter CA-4037x1, Cable Socket CA-4002x2
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
64
Isolation of Digital Input
3750 V
Level of Logic "0"
0~1 V
Level of Logic "1"
20~28 V
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.51 kg
