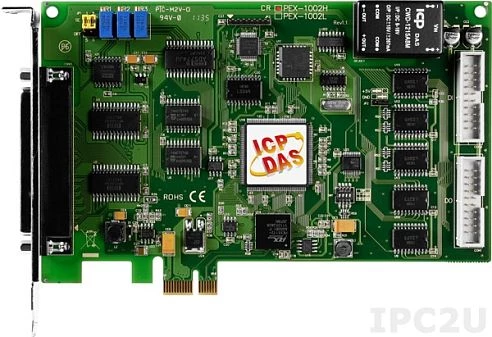

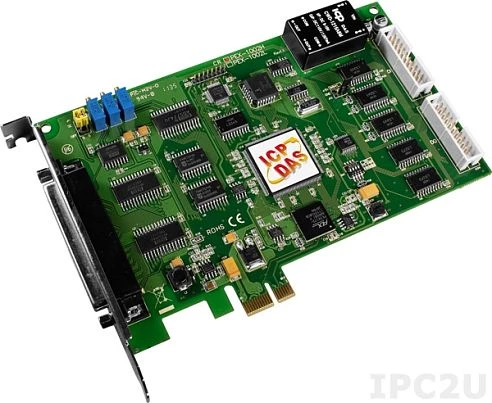

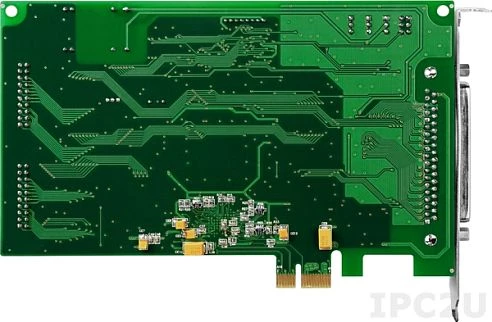

PEX-1002H
ICP DAS
SKU: 05908700
Multifunction PCI Express Adapter, 32SE/16D ADC, 16DI, 16DO, Timer, Cable Socket CA-4002x1
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Analog Input
Total channels of analog input
32
Single-Ended channels
32
Differential channels
16
Number of Bits
12 Bit
Sampling rate
44000 Hz
Voltage range
+/-100 mV, +/-1 V, +/-10 V, +/-10 mV
Digital Input
Total channels of digital input
16
Level of Logic "0"
0~0.4 V
Level of Logic "1"
2~5 V
Number of channels
3
Counter capacity
16 Bit
Max frequency
10 kHz
Digital Output
Total channels of digital output
16
Output voltage
0~5 V
Max. load current
0.8 mA
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
