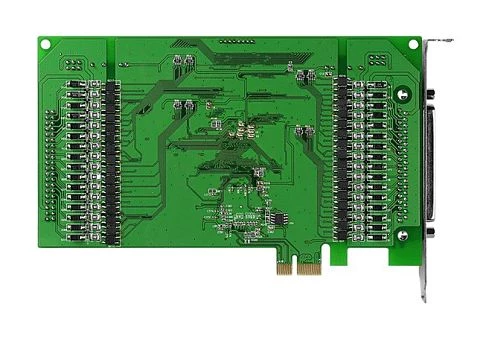

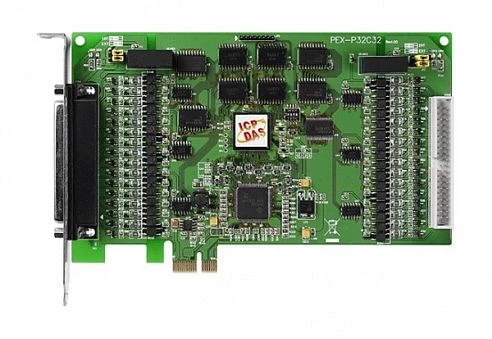

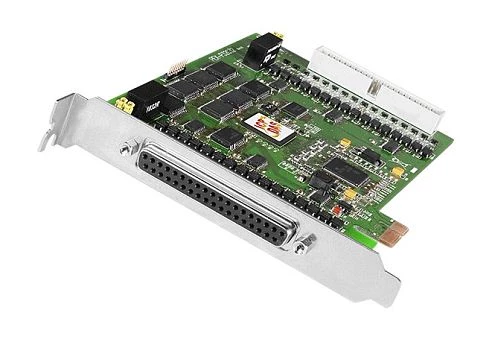

PEX-P32C32
ICP DAS
SKU: 06496400
PCI Express x 1 Isolated 32DI, 32DO Board, Adapter CA-4037x1, Cable Socket CA-4002x2
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
32
Isolation of Digital Input
3750 V
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
0~30 V
Max. load current
100 mA
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
