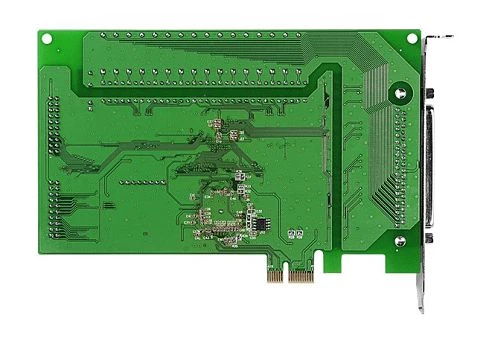

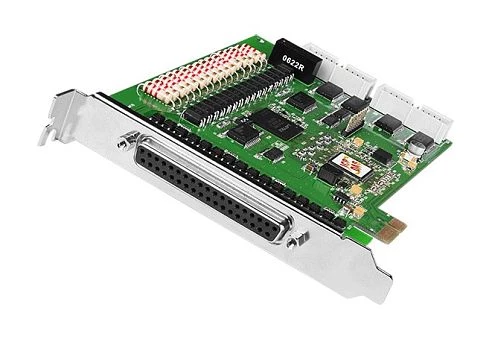

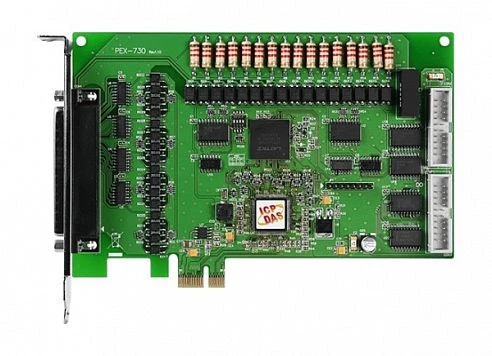

PEX-730

ICP DAS
SKU: 06591700
PCI Express x 1 Isolated 16DI, 16DO, Non-Isolated TTL 16DI, 16DO Card
Price on request
Available on order
Available on order
System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
32
Isolation of Digital Input
3750 V
Level of Logic "0"
0~1 V
Level of Logic "1"
9~24 V
Digital Output
Total channels of digital output
32
Output voltage
0~30 V
Max. load current
100 mA
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.13 kg
Gross Weight
0.75 kg
