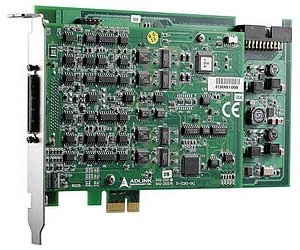

DAQe-2213
ADLink
SKU: 03644900
Multifunction PCI Express Adapter, 16SE/8DI 16 bit ADC, FIFO, 24DI/O, 2 Timers
Price on request
Available on order
Available on order
System Architecture
System Bus
PCI-Express x1
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Differential channels
8
Number of Bits
16 Bit
Sampling rate
250 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, 0...2.5 V, 0...5 V, 0...10 V
Digital Input-Output
Channels of DIO
24
Digital Input
Number of channels
2
Counter capacity
16 Bit
Max frequency
40 kHz
Signal Type
Frequency
Connectors
Connectors
2x68-pin SCSI VHDCI
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Net Weight
0.36 kg
Gross Weight
0.93 kg
