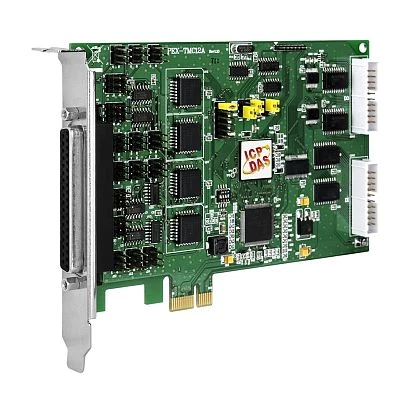

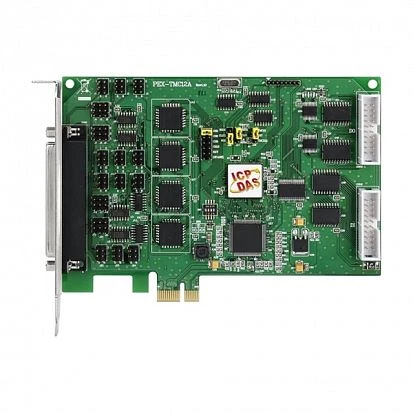

PEX-TMC12A
ICP DAS
SKU: 08703800
PCI Express 12 Channel Timer/Counter Board
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
16
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Number of channels
12
Counter capacity
16 Bit
Max frequency
10 kHz
Digital Output
Total channels of digital output
16
Output voltage
0~5 V
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Windows Server 2003, Windows Server 2008, Windows XP, Windows 7, Windows 8, Linux OS, Windows 10
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, MATLAB, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.4 kg
