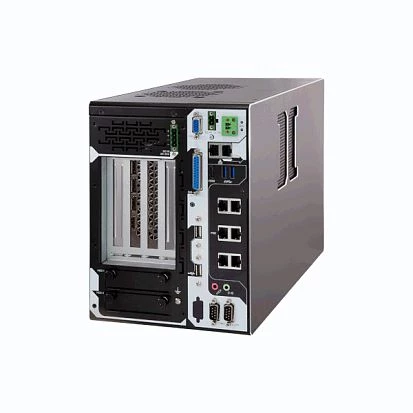

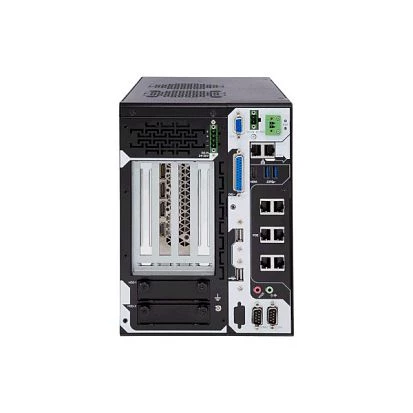

FPC-9108-P6-G3
Arbor
SKU: 57847900
Embedded Edge AI PC, Intel 10th Gen Core i3/i5/i7/i9 CPU, W480E, Up to 64GB DDR4 RAM, HDMI/VGA, 2x2.5/1GbE LAN, 6xGbE PoE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, DIO, MiniPCIe, 2xM.2, 2xSIM, 2x2.5" Drive Bay, 1xPCIe x16, 3xPCI, 12-36VDC-In, -20..50C, R1.2
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel W480E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel WGI219LM 10/100/1000 Mbps, Intel WGI225LM
Total Ethernet
8
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
PoE 10/100/1000 Mbit/s
6
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
7
PCI
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2230 E, 3052 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
Optional
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 4xUSB, Mic In, Line Out, DC input (terminal block), 1xDB25 DIO, 8xRJ45 Ethernet
System Power Input
Input Voltage DC
12..36 V
Backup input DC supply voltage
18~36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
181 mm
Height
380 mm
Depth
250 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Vibration
Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD
Shock
Comply with MIL-STD-810G, Method 516.6,Table 516.6-II, 20G
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.7 kg
Gross Weight
7.4 kg
Construction
Construction Chassis
