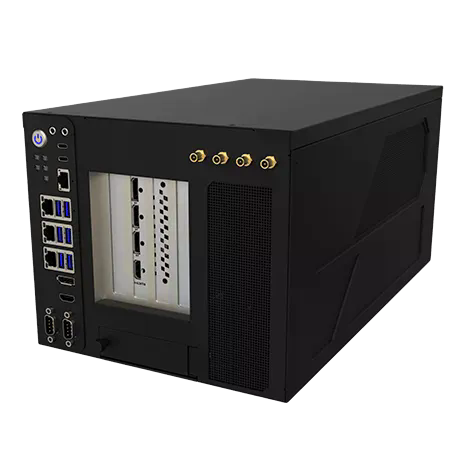

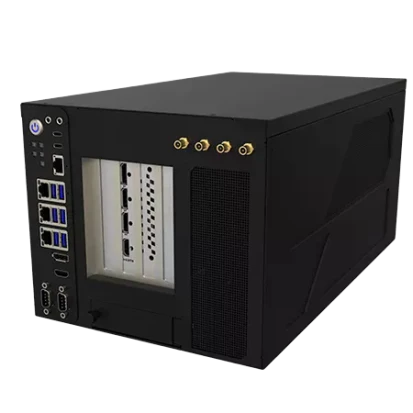

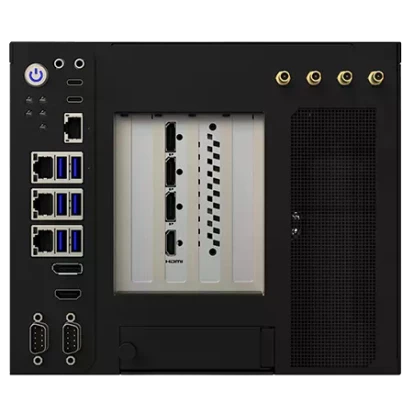

WNAI-E800L
Winmate
SKU: 80315100
Industrial Edge AI System, Intel Core i7-14700T CPU, R680E Chipset, Up to 96GB DDR5 RAM, 128GB NVME SSD, DP, HDMI, 3x2.5GbE LAN, 6xUSB 3.2, 2xCOM, 1xM.2 Key-B, 1xM.2 Key-E, 1xPCIe x16 (GPU Opt.), 3xPCIe x8, Audio, 100-240VAC-in with 1200W PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i7-14700T
Socket
LGA1700
CPU Support Type
Core i7, Core i9
Max CPU frequency
5.2 GHz
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB v3.x
6
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
7
PCI Express x16
1
PCI Express x8
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, WLAN LED, LAN LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 6xUSB, Mic In, Line Out, Display Port, 2xDC input (terminal block)
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
ATX PS/2
Output Power
1200 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
400 mm
Height
196 mm
Depth
230 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
7.85 kg
Gross Weight
9.4 kg
