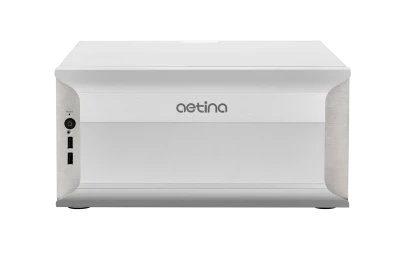

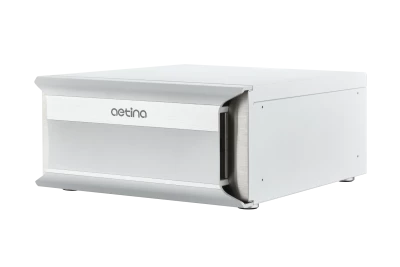

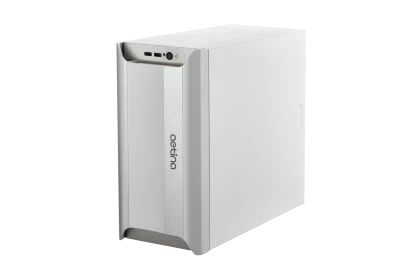

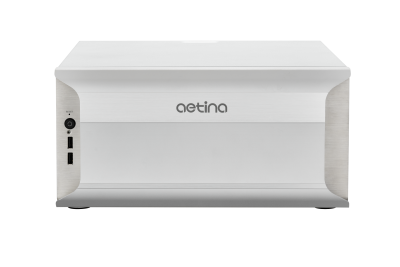

AIP-KQ67-A1--M
AETINA
SKU: 80240800
Industrial AI Workstation, Intel 13/12th Gen Core i9/i7/i5 CPU, Up to 128GB DDR5 RAM, HDMI/2xDP, 1xGbE LAN, 3x2.5GbE LAN, 6xUSB 3.2, 1xUSB-C 3.2, 2xUSB 2.0, 2x2.5" Bay, 1xM.2 Key-M, 1xM.2 Key-E, 1xPCIe x16, 2xPCIe x4, 1xPCIe x2, 500W PSU (850W Opt.)
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
4xDIMM
ECC
No
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
10/100/1000 Mbit/s
1
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
9
USB 2.0
2
USB v3.x
7
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

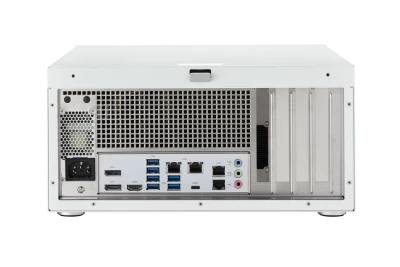

HDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line In, Line Out, AC Input, 2xDisplayPort, USB type C
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
PS/2, Internal
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
315 mm
Height
159 mm
Depth
413 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-95%
Vibration
1Grms
Shock
10G (with 11ms duration, half sine wave)
Standards and Certifications
Certifications
CE/FCC, rohs
Safety
LVD
Dimensions
Net Weight
10 kg
Gross Weight
11.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
4xDIMM
ECC
No
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
10/100/1000 Mbit/s
1
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
9
USB 2.0
2
USB v3.x
7
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line In, Line Out, AC Input, 2xDisplayPort, USB type C
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
PS/2, Internal
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
315 mm
Height
159 mm
Depth
413 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-95%
Vibration
1Grms
Shock
10G (with 11ms duration, half sine wave)
Standards and Certifications
Certifications
CE/FCC, rohs
Safety
LVD
Dimensions
Net Weight
10 kg
Gross Weight
11.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
4xDIMM
ECC
No
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
10/100/1000 Mbit/s
1
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
9
USB 2.0
2
USB v3.x
7
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line In, Line Out, AC Input, 2xDisplayPort, USB type C
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
PS/2, Internal
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
315 mm
Height
159 mm
Depth
413 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-95%
Vibration
1Grms
Shock
10G (with 11ms duration, half sine wave)
Standards and Certifications
Certifications
CE/FCC, rohs
Safety
LVD
Dimensions
Net Weight
10 kg
Gross Weight
11.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
4xDIMM
ECC
No
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
10/100/1000 Mbit/s
1
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
9
USB 2.0
2
USB v3.x
7
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line In, Line Out, AC Input, 2xDisplayPort, USB type C
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
PS/2, Internal
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
315 mm
Height
159 mm
Depth
413 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-95%
Vibration
1Grms
Shock
10G (with 11ms duration, half sine wave)
Standards and Certifications
Certifications
CE/FCC, rohs
Safety
LVD
Dimensions
Net Weight
10 kg
Gross Weight
11.5 kg
