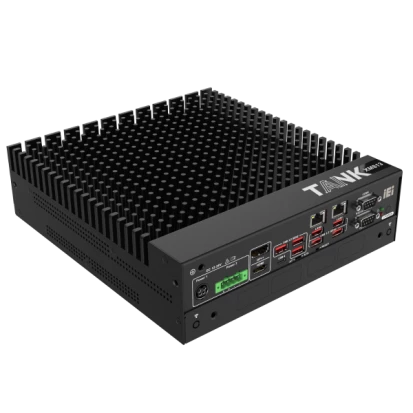

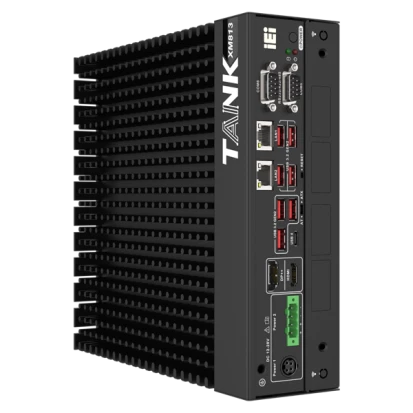

TANK-XM813-U7AD
IEI
SKU: 80285700
Rugged Embedded System, LGA1851 Socket, Intel Series 2 Core Ultra 7 265T 5.3GHz CPU, Intel W880, 16GB DDR5 RAM, 1xHDMI, 1xDP++, 2x2.5Gbit LAN, 6xCOM, 7xUSB, 1xUSB 4 Type-C, 12-bit DIO, 2x2.5" Drive Bay, 1xM.2 2280 Key-M, 1xM.2 2230 Key-A, 12-28VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Arrow Lake
Processor Installed
Intel Core Ultra 7 265T
Socket
LGA1851
CPU Support Type
Core Ultra 5, Core Ultra 7, Core Ultra 9
Max CPU frequency
5.3 GHz
Chipset
Chipset
Intel W880
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, Type C DP
Ethernet
Controller Type
Intel i226-LM, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB v3.x
8
Digital Input-Output
Channels of DIO
12
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 A
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
6xDB9, HDMI, 2xRJ45 Ethernet, 7xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB9 DIO, 4-pin DC input, USB type C
System Power Input
Input Voltage DC
12..28 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
255 mm
Height
68.7 mm
Depth
230.6 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
3.2 kg
Gross Weight
3.6 kg
