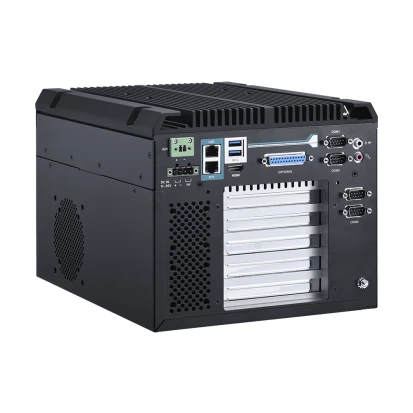

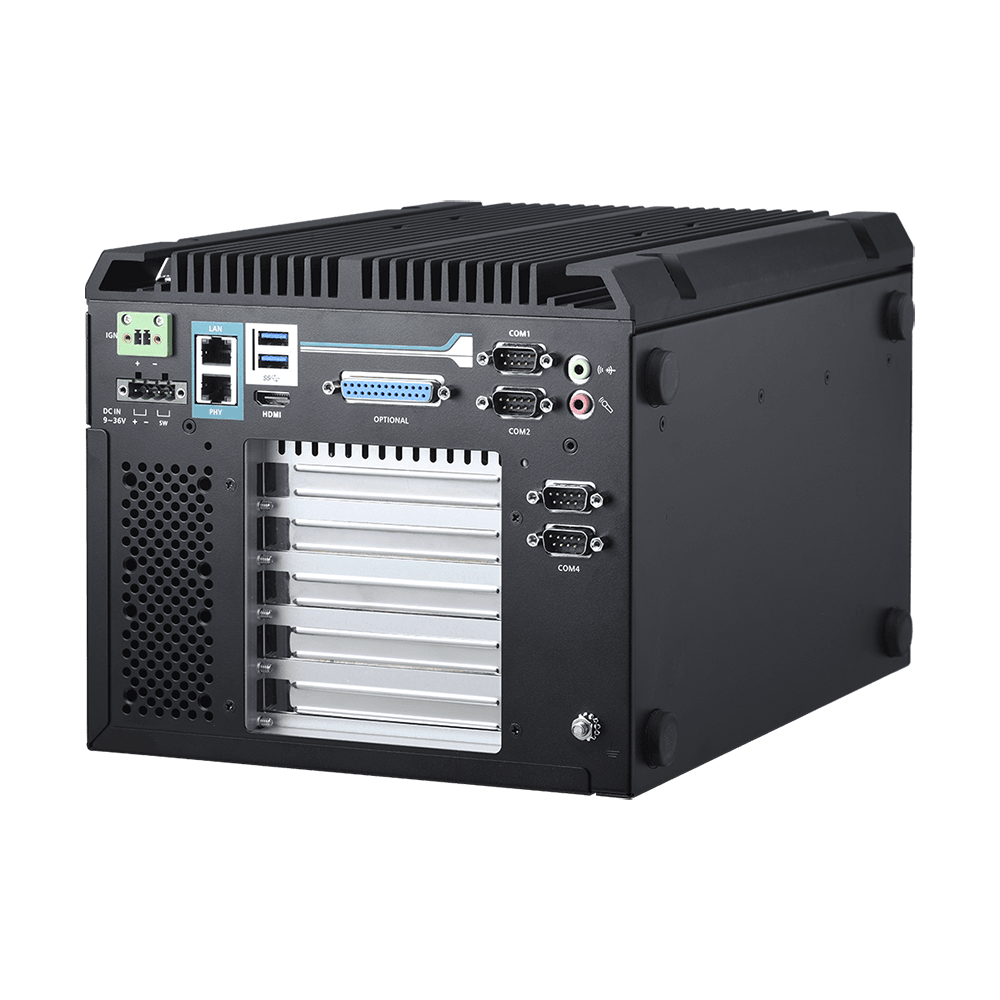

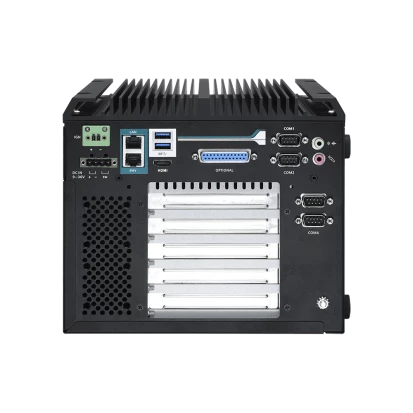

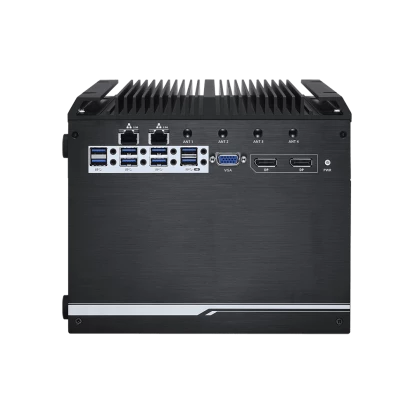

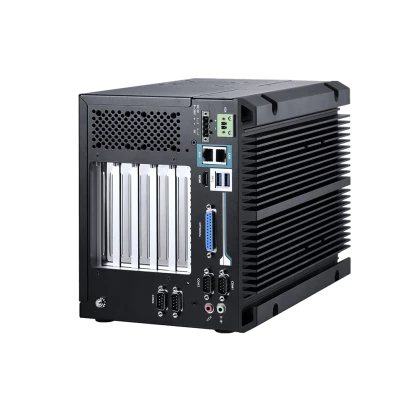

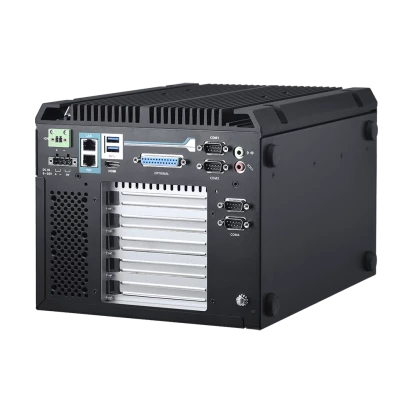

FPC-8208-G1

FPC-8208-G1

Arbor
SKU: 80374300
Ruggedized Edge AI Box PC, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, Q670E, Up to 96GB DDR5 RAM, 2xDP/HDMI/VGA, 4xLAN, 10xUSB 3.2, 4xCOM, 16-bit DIO, 2x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 1xM.2 Key-B, 1xPCIe x16, 2xPCIe x4, 9-36VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Processor Installed
Options Available – Contact Sales
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA, 2xDisplayPort
Ethernet
Controller Type
Intel WGI210AT 10/100/1000 Mbps, Intel WGI219LM 10/100/1000 Mbps, Intel WGI226LM
Total Ethernet
4
10/100/1000 Mbit/s
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB v3.x
10
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
7
PCI Express x16
1
PCI Express x4
2
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
Optional
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 4xRJ45 Ethernet, 10xUSB, Mic In, Line Out, 2xDisplayPort, DC input (terminal block), 1xDB25 DIO
System Power Input
Input Voltage DC
9..36 V
Power Ignition Control
Yes
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
225 mm
Height
190 mm
Depth
292 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
7.35 kg
Gross Weight
8.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
