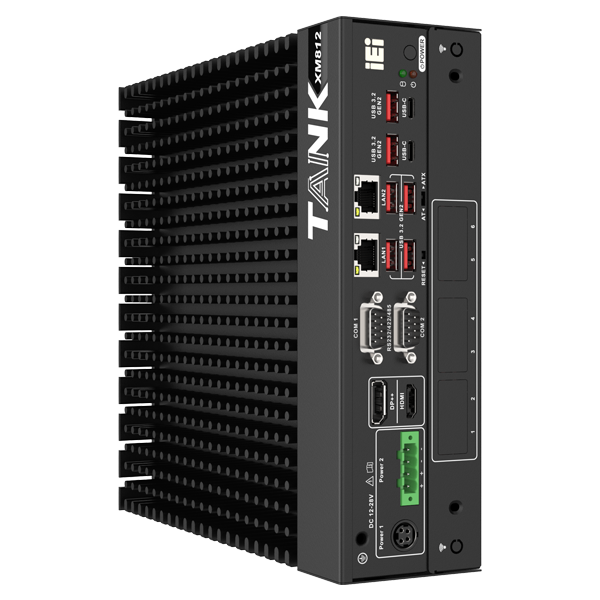

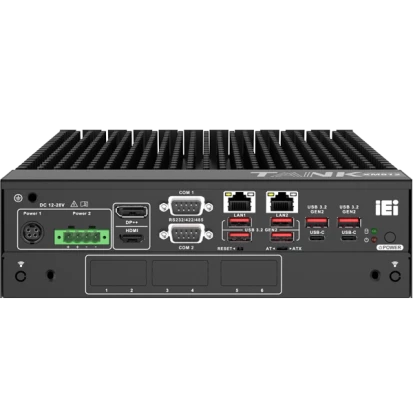

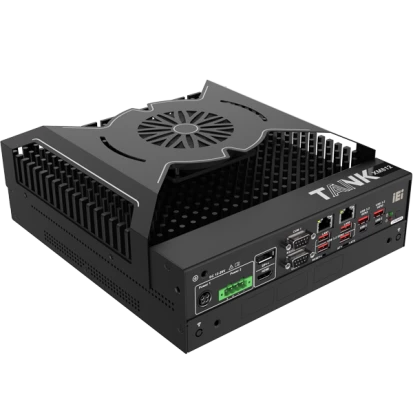

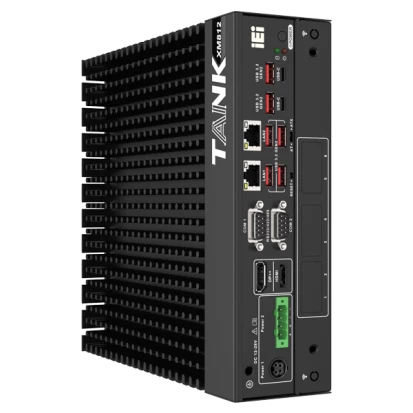

TANK-XM812-85AC
IEI
SKU: 80286500
Rugged Embedded System, AM5 Socket, AMD Ryzen 5 8600G 5.0GHz CPU, AMD B650, 8GB DDR5 RAM, 1xHDMI, 1xDP++, 2x2.5Gbit LAN, 6xCOM, 6xUSB, 2xUSB-C 3.2 DP Alt., 12-bit DIO, 2x2.5" Drive Bay, 1xM.2 2280 Key-M, 1xM.2 2230 Key-A, Audio, 12-28VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Zen 4 Raphael
Processor Installed
AMD Ryzen 5 8600G
Socket
LGA1718 (AM5)
Max CPU frequency
5 GHz
Chipset
Chipset
AMD B650
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, Type C DP
Ethernet
Controller Type
Intel i226-LM, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
12
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 A
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
6xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, 1xDB15 DIO, DC input (terminal block), 4-pin DC input, 2xUSB type C
System Power Input
Input Voltage DC
12..28 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
255 mm
Height
68.7 mm
Depth
230.6 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
3.18 kg
Gross Weight
5 kg
