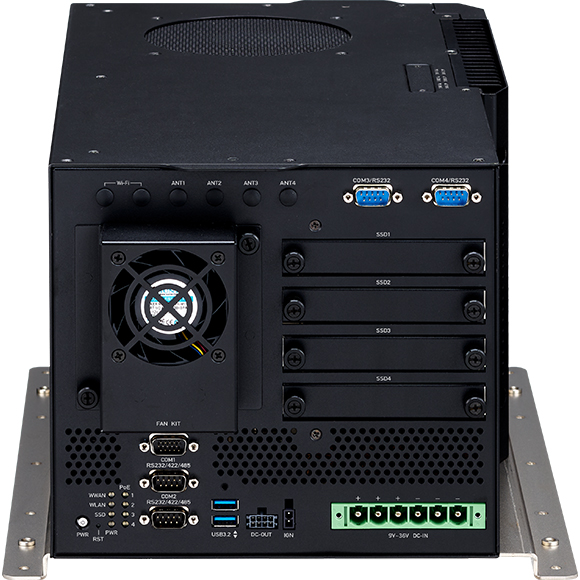

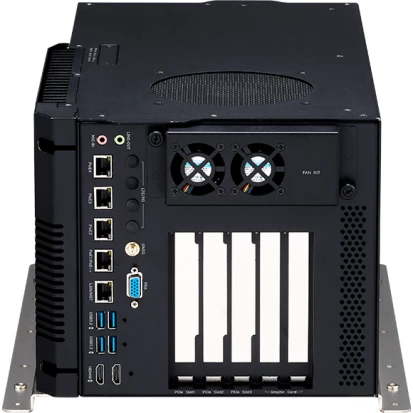

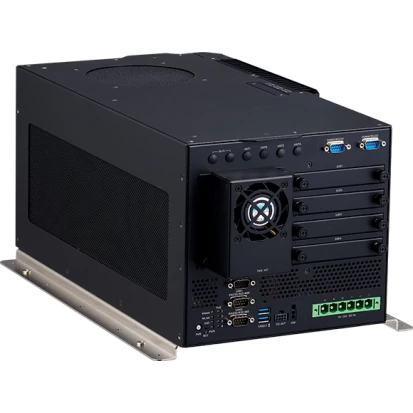

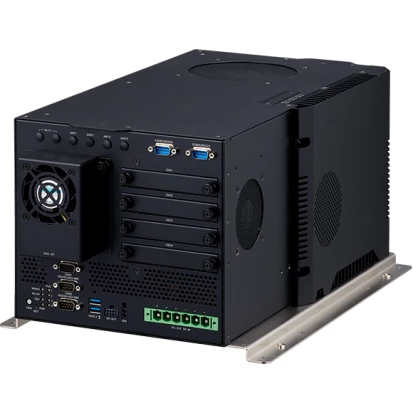

ATC-8120-C4F
NEXCOM
SKU: 80340000
Embedded Machine Vision PC, Intel Bartlett Lake Core 7/5/3 CPU, R680E, Fan Kit, Up to 96GB DDR5 RAM, 2xHDMI, VGA, 4xPoE+, 1xLAN, 6xUSB, 4xCOM, DIO/CAN, GPS, 4x2.5" Bay, mPCIe, 3xM.2 (Key-M/B/E), 1xPCIe x16, 2xPCIe x8, 1xPCIe x4, 9-36VDC-in, 12VDC-out
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fans
CPU
СPU Generation/Family
Bartlett Lake
Processor Installed
Options Available – Contact Sales
Socket
LGA1700
CPU Support Type
Core 3, Core 5, Core 7
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, VGA
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 2.5 Gbit/s
4
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Industrial Interfaces
CAN Port
2
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
9
PCI Express x16
1
PCI Express x8
2
PCI Express x4
1
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED, WLAN LED, WWAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, DB15 VGA, 2xHDMI, 5xRJ45 Ethernet, 6xUSB, Audio (in/out/Mic), DC input (terminal block), 12V DC Output, 1xDB15 (DIO/CAN)
System Power Input
Input Voltage DC
9..36 V
Power Ignition Control
Yes
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
296 mm
Height
220 mm
Depth
435 mm
Operating Conditions
Operating Temperature
-30..70 °C
Humidity
10-95%
Vibration
IEC 60068-2-64 - 1.0g@5~500Hz (in operating, HDD), 1.6g for HDD w/ damping brackets - 2.0g@5~500Hz (in operating, SSD + graphics card)
Shock
Shock (SSD + graphics card) - Operating: MIL-STD-810G, Method 516.6, procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Vehicle
E-Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
8 kg
Gross Weight
9.2 kg
