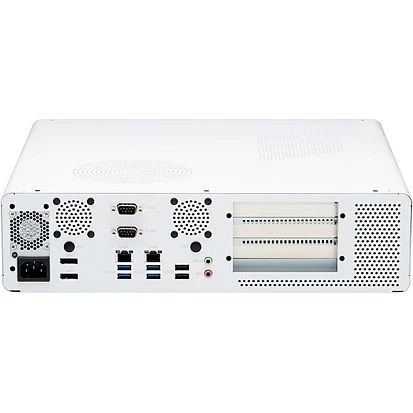

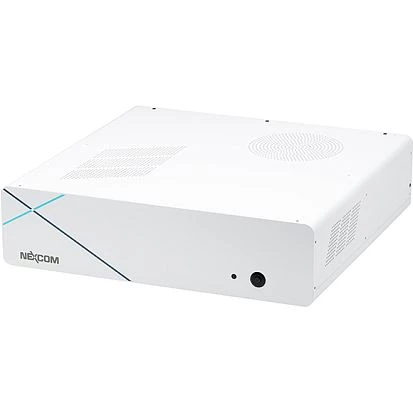

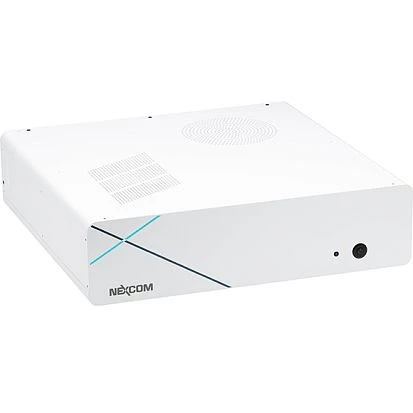

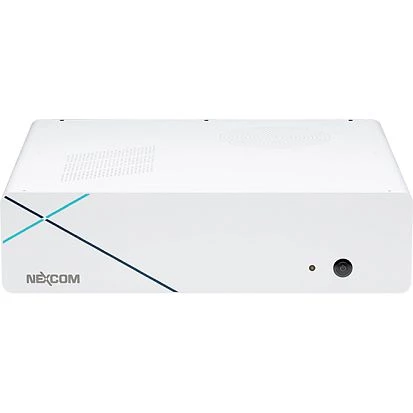

AIEdge-X310

AIEdge-X310

NEXCOM
SKU: 80077200
Industrial Edge AI System AIEdge-X310, Intel 14/13/12th Gen Core i3/i5/i7/i9 CPU, H610E Chipset, Up to 64GB DDR5 RAM, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2xCOM, Audio, 2xSATA, 1x2.5" Bay, 1xM.2 Key-M, 1xPCIe x16 Gen5, 850W ATX PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fans
CPU
СPU Generation/Family
Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xDisplayPort
Ethernet
Controller Type
Intel i219-LM, Intel i226-LM
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
PCI Express x16
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, AC Input, 2xDisplayPort
Power Supply
Type of Power Supply
ATX PS/2
Output Power
850 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
390 mm
Height
98.5 mm
Depth
380 mm
Operating Conditions
Operating Temperature
0..451 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 55024, EN 55032
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
6.7 kg
Gross Weight
7.3 kg
