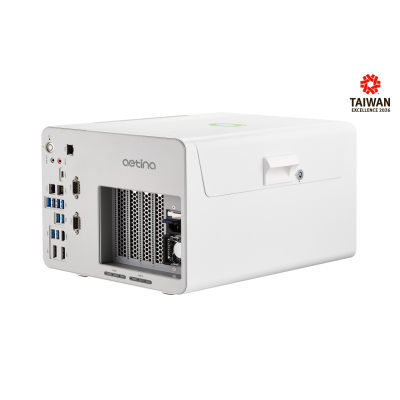

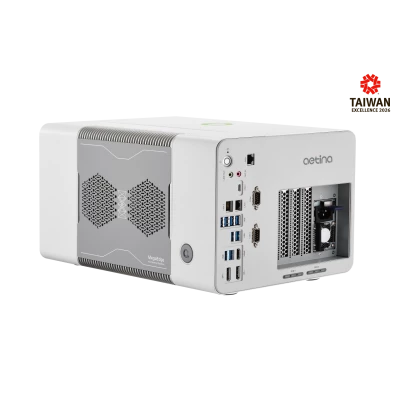

AIP-FR68S-A1QC

AIP-FR68S-A1QC

AETINA
SKU: 80252300
Industrial AI Workstation, Intel 14/13/12th Gen Core i9/i7/i5 CPU, Up to 192GB DDR5 RAM, HDMI/2xDP, 2x2.5GbE LAN, 8xUSB 3.2, 1xUSB-C, 2xCOM, 2x2.5" Bay, 2xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 3xPCIe 5.0 x16, 2000W PSU w/ 110-240VAC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fans
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i5, Core i7, Core i9
Memory
Form-factor
DDR5
Maximum Memory
192 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
9
USB v3.x
9
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
7
PCI Express x16
3
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, AC Input, 2xDisplayPort, USB type C
Power Supply
Type of Power Supply
Internal
Output Power
2000 W
Input Voltage AC
110..240 V
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04, Ubuntu 24.04
Dimensions and weight
Width
240 mm
Height
206 mm
Depth
400 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class A, rohs
Safety
LVD
Dimensions
Net Weight
14.45 kg
Gross Weight
16 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fans
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i5, Core i7, Core i9
Memory
Form-factor
DDR5
Maximum Memory
192 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
9
USB v3.x
9
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
7
PCI Express x16
3
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, AC Input, 2xDisplayPort, USB type C
Power Supply
Type of Power Supply
Internal
Output Power
2000 W
Input Voltage AC
110..240 V
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04, Ubuntu 24.04
Dimensions and weight
Width
240 mm
Height
206 mm
Depth
400 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class A, rohs
Safety
LVD
Dimensions
Net Weight
14.45 kg
Gross Weight
16 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fans
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i5, Core i7, Core i9
Memory
Form-factor
DDR5
Maximum Memory
192 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
9
USB v3.x
9
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
7
PCI Express x16
3
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, AC Input, 2xDisplayPort, USB type C
Power Supply
Type of Power Supply
Internal
Output Power
2000 W
Input Voltage AC
110..240 V
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04, Ubuntu 24.04
Dimensions and weight
Width
240 mm
Height
206 mm
Depth
400 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class A, rohs
Safety
LVD
Dimensions
Net Weight
14.45 kg
Gross Weight
16 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fans
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i5, Core i7, Core i9
Memory
Form-factor
DDR5
Maximum Memory
192 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
9
USB v3.x
9
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
7
PCI Express x16
3
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, AC Input, 2xDisplayPort, USB type C
Power Supply
Type of Power Supply
Internal
Output Power
2000 W
Input Voltage AC
110..240 V
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04, Ubuntu 24.04
Dimensions and weight
Width
240 mm
Height
206 mm
Depth
400 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class A, rohs
Safety
LVD
Dimensions
Net Weight
14.45 kg
Gross Weight
16 kg

Documentation
AIP-FR68S-Datasheet.pdf
Documentation
AIP-FR68S-Datasheet.pdf
Documentation
AIP-FR68S-Datasheet.pdf
Documentation
AIP-FR68S-Datasheet.pdf
