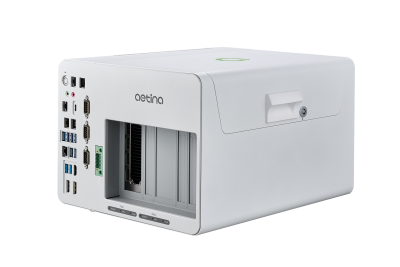

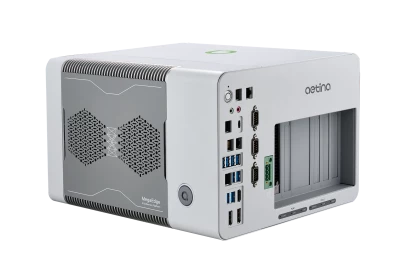

AIP-FR68-A2--M
AETINA
SKU: 80240000
Industrial AI Workstation, Intel 14/13/12th Gen Core i9/i7/i5 CPU, Up to 192GB DDR5 RAM, HDMI/2xDP, 1x10GbE LAN, 3x2.5GbE LAN, 8xUSB 3.2, 1xUSB-C, 3xCOM, 4x2.5" Bay, 2xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 2xPCIe x16, 1xPCIe x4, 1xPCIe x1, 24-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i5, Core i7, Core i9
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
4xDIMM
ECC
No
Maximum Memory
192 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, 2xDisplayPort
Ethernet
Controller Type
Intel i226-LM, Marvell AQC113
2,5 Gbit/s
3
10 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
3
RS-485
1
RS-232/422/485
2
USB Total
9
USB v3.x
9
Drive interfaces
SATA 3
4
M.2
2
Storage Cage
Number Of Cage External
4
2.5" Cage Intenal
4
Extension Slots
Total
9
PCI Express x16
3
PCI Express x4
1
PCI Express x1
1
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
1xLED fan, 2xLED temp, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line Out, SIM Card Slot, 2xDisplayPort, DC input (terminal block), RJ45 (COM), USB type C
System Power Input
Input Voltage DC
24..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04, Ubuntu 24.04
Dimensions and weight
Width
279 mm
Height
206 mm
Depth
340 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-95%
Vibration
1Grms ,IEC60068-2-64,Random,5 ~ 500 Hz ,1Hr / Axis (operation, w/o PCIe Card)
Shock
10G, IEC 60068-2-27, Half Sine, 11 msDuration (operation, w/o PCIe Card)
Standards and Certifications
Certifications
CE, FCC Class A, rohs
Safety
LVD
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
11 kg
Gross Weight
12.5 kg
