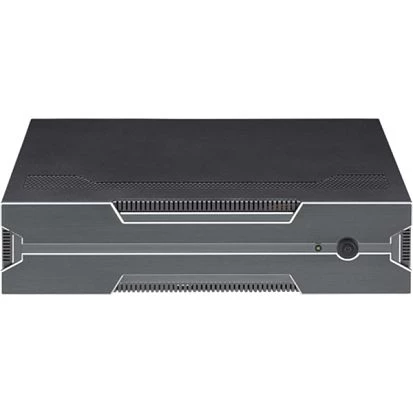

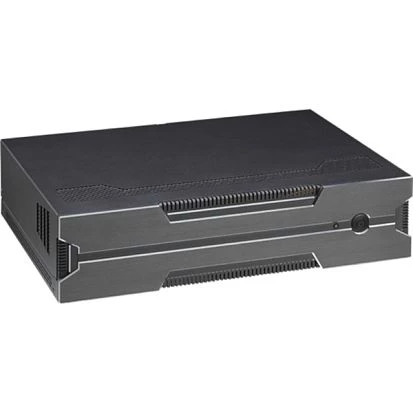

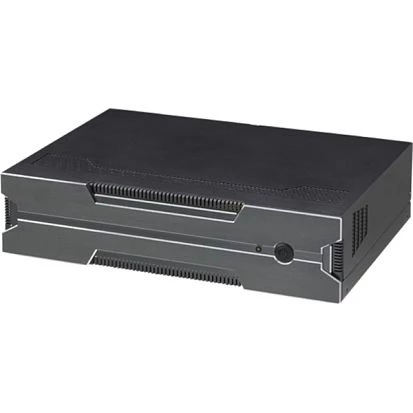

AIEdge-X300
NEXCOM
SKU: 57185900
Industrial Edge AI System AIEdge-X300, LGA1151 Socket, Intel 9th/8th Gen Core i3/i5/i7/i9 CPU, Q370 Chipset, Up to 32GB DDR4 RAM, 3xHDMI, 2xGbE LAN, 4xUSB 3.0, 2xCOM, Audio, 1x3.5/2.5" Bay, 1xM.2 Key-M, 1xM.2 Key-E, 1xPCIe x16 Gen3, 500W ATX PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
PCI Express x16
3
M.2
1
Connectors
Connectors
2xRJ45 Ethernet, 4xUSB, Line Out, 2xDB9 Male, 3xHDMI
Power Supply
Type of Power Supply
ATX
Output Power
500 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
360 mm
Height
85 mm
Depth
250 mm
Operating Conditions
Operating Temperature
0..45 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
EMI
FCC Part 15
EMS
EN 55024, EN 55032
Safety
LVD
Dimensions
Gross Weight
1 kg
