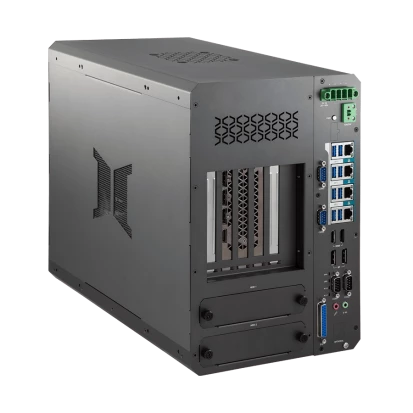

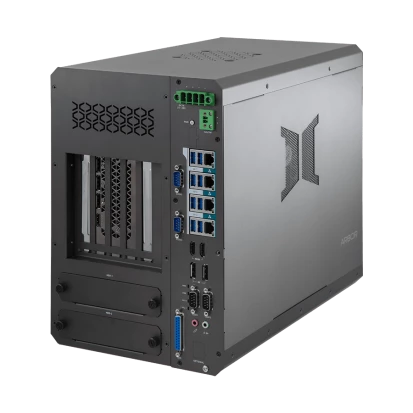

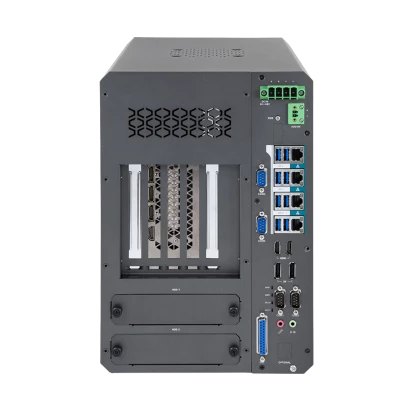

FPC-9309W-G5

FPC-9309W-G5

Arbor
SKU: 80219400
Embedded Edge AI System, Intel 2nd Gen Core Ultra 9/7/5/3 CPU, W880, Up to 192GB DDR5 ECC/non-ECC RAM, 2xDP, 2xHDMI, 4x2.5GbE LAN, 8xUSB 3.2, 4xCOM, 16-bit DIO, 2x2.5" Bay, 1xMiniPCIe, 2xM.2 Key-M, 1xM.2 Key-B, 2xPCIe x16, 3xPCIe x8, 24-48DC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fans
CPU
СPU Generation/Family
Arrow Lake
Socket
LGA1851
CPU Support Type
Core Ultra 5, Core Ultra 7, Core Ultra 9
Chipset
Chipset
Intel W880E
Memory
Form-factor
DDR5
Socket Type
4xDIMM
ECC
Yes
Maximum Memory
192 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, 2xDisplayPort
Ethernet
Controller Type
Intel WGI226LM
Total Ethernet
4
2,5 Gbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB v3.x
8
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
11
PCI Express x16
2
PCI Express x8
3
M.2
5
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 2242 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED, SSD LED
Controls
On/Off
Connectors
Internal Ports
2xUSB 2.0
Connectors
4xDB9, 2xHDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line Out, 2xDisplayPort, DC input (terminal block), 1xDB25 DIO
System Power Input
Input Voltage DC
24..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
220 mm
Height
320 mm
Depth
380 mm
Operating Conditions
Operating Temperature
-20..45 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
7.4 kg
Gross Weight
9 kg
Construction
Construction Chassis
