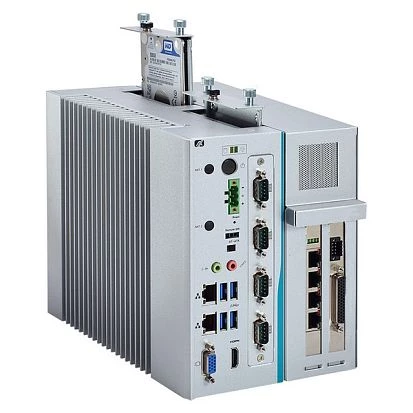

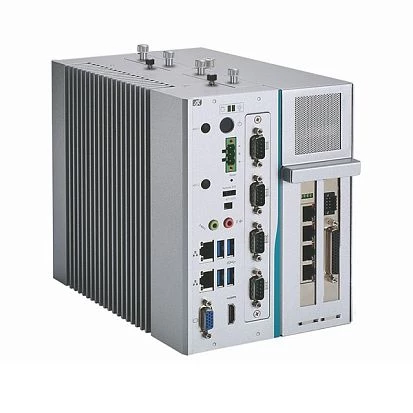

IPS962-512-PoE
AXIOMTEK
SKU: 08289100
2-slot fanless embedded system with Intel Core i7/i5/i3 7th/6th Gen , Intel H110, 4xPOE, 4xUSB 3.0, HDMI/VGA, 1xPCIe x16, 1xPICe x4, ATX/AT DC-IN 19-30 V
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
Protection Level of Chassis
IP40
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i210AT 10/100/1000 Mbps
Total Ethernet
6
10/100/1000 Mbit/s
2
Interfaces
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
PCI Express x16
1
PCI Express x4
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out
System Power Input
Input Voltage DC
19..30 V
Dimensions and weight
Width
188.1 mm
Height
192 mm
Depth
230 mm
Operating Conditions
Operating Temperature
-10..55 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5.9 kg
Gross Weight
6.9 kg
