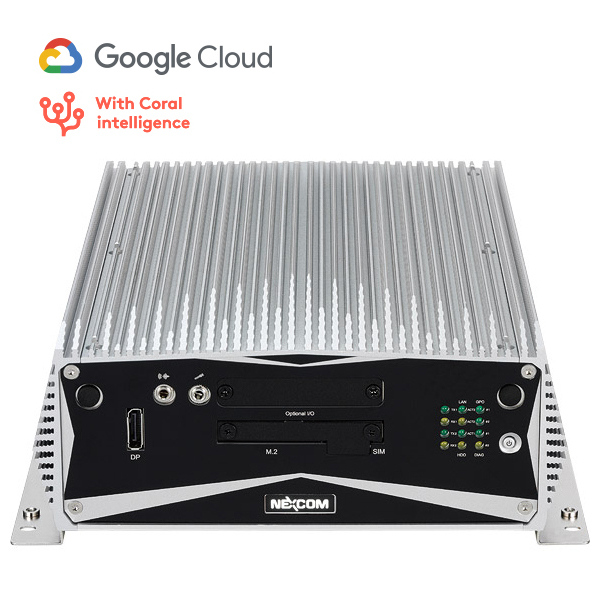

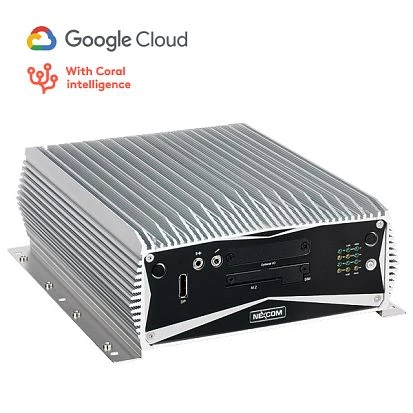

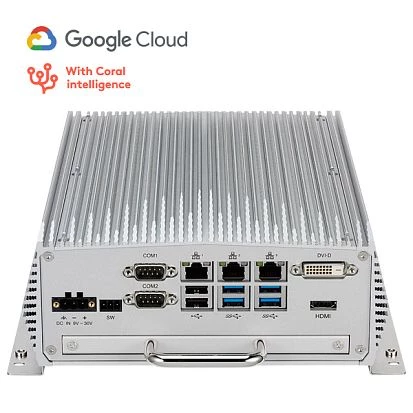

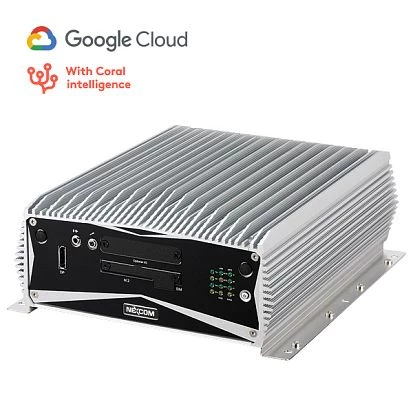

NISE-3800E-GCIoT
NEXCOM
SKU: 56981900
Fanless Embedded Box PC, Support 6th gen. Intel Core i7/i5/i3 CPUs, Q170 Chipset, up to 16GB DDR4 RAM, DVI, HDMI, DP, 3xGbit LAN, 2xUSB 2.0,6xUSB, 2xCOM, Audio, 2.5" SATA HDD Bay, 2xMini-PCIe, PCIe x4, 9..30V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q370
Memory
Socket Type
2xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD 530 graphics
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Connectors
Connectors
ATX, 2xDB9, DVI-D, HDMI, 6xUSB, Mic In, Line Out, Display Port, SIM Card Slot
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
AT, ATX
Software
Operating System Compatibility
Windows 7, Windows 8, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-27; M.2: 50G, half sine, 11ms, IEC60068-27
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
