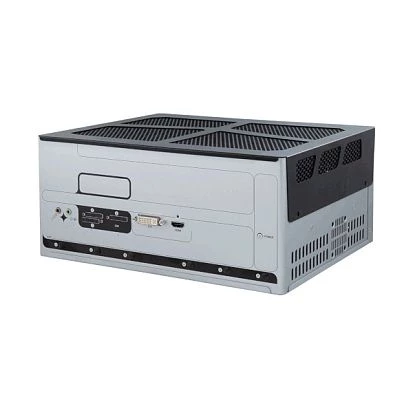

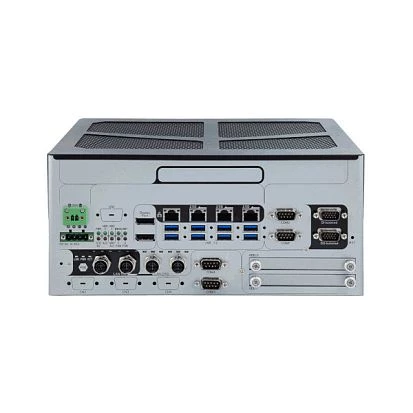

FPC-5210-Series
Arbor
SKU: 57849700
Fanless Embedded PC, Intel 12/13th Gen Core i3/i5/i7/i9 CPU, R680E Chipset, Up to 64GB DDR5 RAM, 2xDP/HDMI/DVI-I, 4xM12 PoE/PoE+ LAN, 4/8/10xGbE LAN, 8xUSB 3.2, 4xCOM, 16-bit DIO, 1xMXM 3.1, 2xMiniPCIe, 3xSIM, 3xM.2, Audio, 9-36VDC-In, -20..55C, R1.0
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DVI-I, HDMI, 2xDisplayPort
Ethernet
Controller Type
Intel i219-LM, Intel i210, Intel i226
Total Ethernet
10
10/100/1000 Mbit/s
1
2,5 Gbit/s
5
10 Gbit/s
2
PoE 10/100/1000 Mbit/s
6
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB v3.x
8
Digital Input-Output
Channels of DIO
16
Isolation DIO
Yes
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
PCI Express x16
1
M.2
2
M.2 Form Factor
2230 E, 3052 B
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 3
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
Optional
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, DVI-I, HDMI, 8xUSB, Mic In, Line Out, 2xDisplayPort, DC input (terminal block), 2xDB15 GPIO, 10xRJ45 Ethernet
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Ubuntu 20.04
Dimensions and weight
Width
285 mm
Height
130 mm
Depth
230 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Vibration
5~500Hz 3G rms X,Y,Z axis w/SSD, according to IEC 60068-2-64
Shock
30 Grms, Half-sine 11 m sec. duration w/ SSD, according IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.68 kg
Gross Weight
5.4 kg
Construction
Construction Chassis
