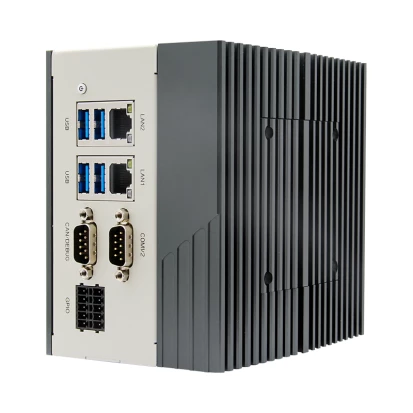

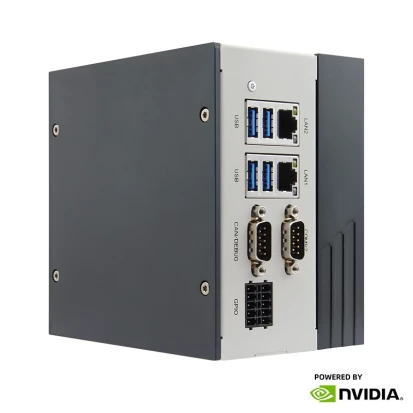

Coeus-3821S-16G
NEXCOM
SKU: 80200700
Embedded Edge AI Box PC, NVIDIA Jetson Orin NX 8-core SoC, NVIDIA Ampere 1024-core GPU, 16GB LPDDR5 RAM, 256GB SSD, HDMI, 2xGbE LAN, 2xUSB 3.0, 2xCOM, 8-bit GPIO, 1xCAN, OTG, MicroSD, Audio, 1xM.2 Key-B, 1xM.2 Key-E, 1xMini-PCIe, 9-30VDC-in, with Fan
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fan
CPU
Processor Installed
Nvidia Jetson Orin NX (8-core Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3)
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Controller Type
Intel i210
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
mSATA
1
MicroSD
1
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

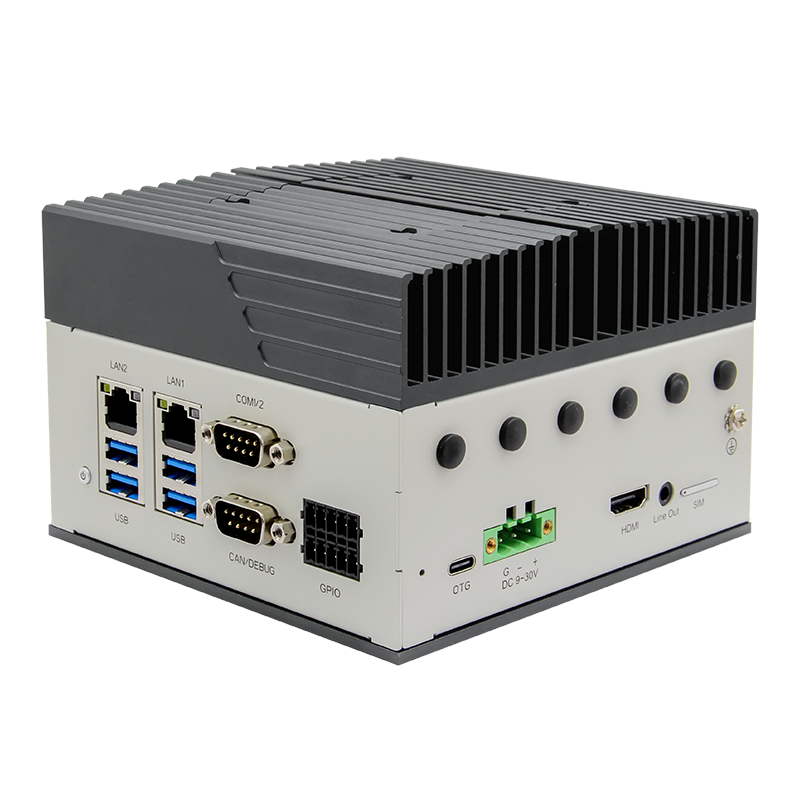

HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block), GPIO (terminal block), 1xCAN Bus, USB type C
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 5.x, Ubuntu 22.04
Dimensions and weight
Width
133 mm
Height
91.3 mm
Depth
135 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
1.35 kg
Gross Weight
2.45 kg
