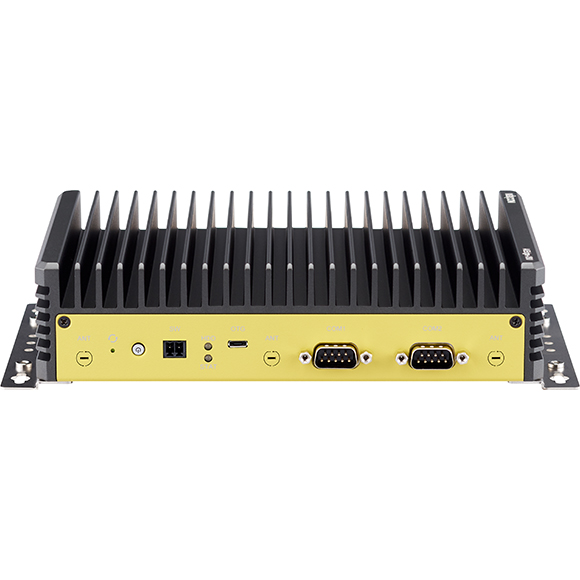

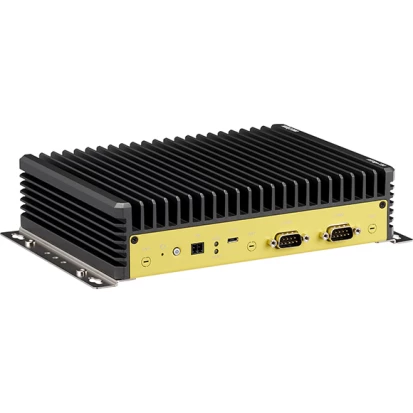

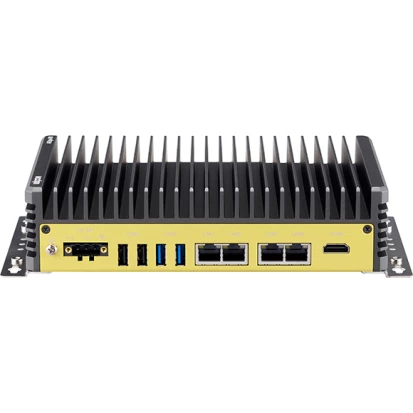

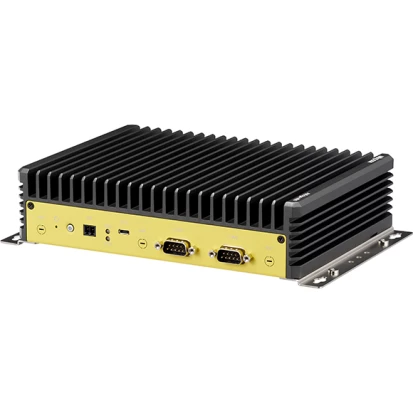

AIEdge-X80-NA8-S
NEXCOM
SKU: 80183800
Fanless Edge AI System, NVIDIA Jetson Orin Nano 6-core SoC, NVIDIA Ampere 1024-core GPU, 8GB LPDDR5 RAM, 128GB NVME SSD, HDMI, 4xGbE LAN, 2xCOM, 2xUSB 2.0, 2xUSB 3.2, 1xMicroUSB OTG, 1xFull-size MiniPCIe, 1xM.2 3042/3052 Key-B, 24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin Nano (6-core Arm Cortex A78AE v8.2 64-bit CPU, 1.2MB L2 + 4MB L3)
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, HDMI, 4xRJ45 Ethernet, 4xUSB, DC input (terminal block), 1xMicro USB
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
NVIDIA Jetpack 6.2
Dimensions and weight
Width
240 mm
Height
54 mm
Depth
154 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
EMI
en_55032, en55035
Dimensions
Net Weight
2.03 kg
Gross Weight
2.42 kg
