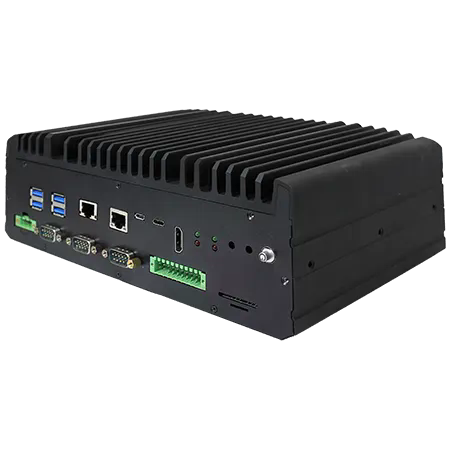

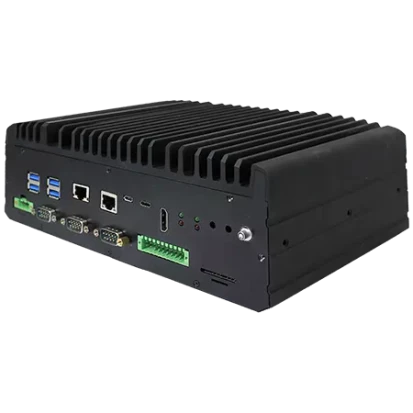

WNAI-E600-32
Winmate
SKU: 80217000
Fanless Edge AI System, Nvidia Jetson AGX Orin 8-core SoC, Nvidia Ampere GPU, 32GB LPDDR5 RAM, 64GB eMMC, HDMI, 1x10GbE LAN, 1xGbE LAN, 4xGbE PoE LAN, 4xUSB 3.2, 1xUSB-C, MicroSD, 2xCOM, 16-bit DIO, 2xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VAC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Nvidia Jetson AGX Orin (8-Core)
Socket
CPU onboard
Max CPU frequency
2 GHz
Memory
Form-factor
DDR5
Default on Board Memory
32 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 2048-cores, 64 Tensor Cores
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
1
10 Gbit/s
1
PoE 10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
16
Isolation DIO
Yes
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
1
M.2
2
MicroSD
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
4
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, WLAN LED, WWAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Internal Ports
2xUSB 2.0
Connectors
2xDB9, HDMI, 6xRJ45 Ethernet, 4xUSB, SIM Card Slot, DC input (terminal block), DIO (terminal block), 1xMicro USB, MicroSD card slot, 1xCAN Bus, USB type C
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
NVIDIA Jetpack 6.2
Dimensions and weight
Width
250 mm
Height
91.5 mm
Depth
170 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
7.85 kg
Gross Weight
9.4 kg
