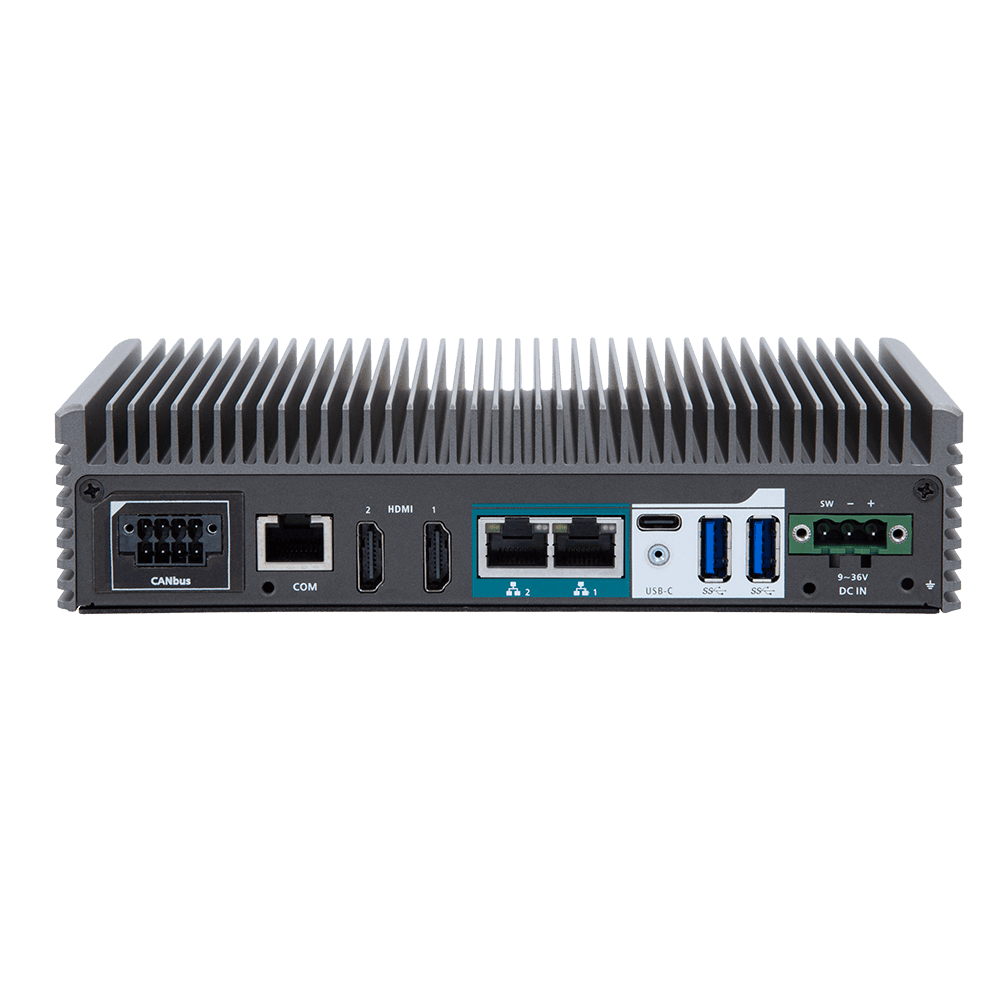

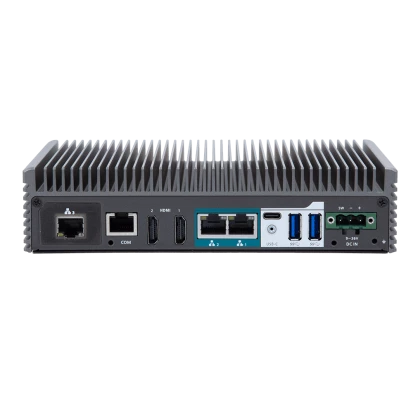

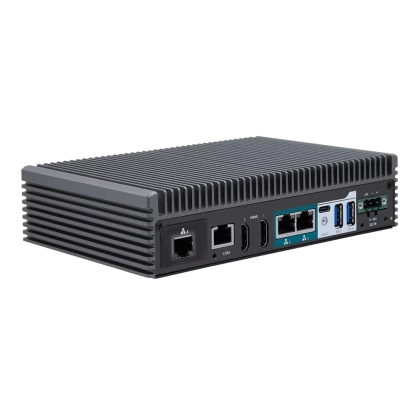

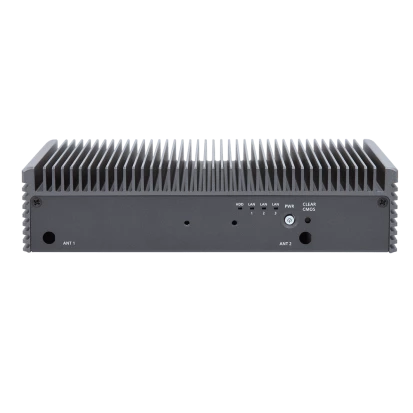

ARES-2100-CAN

ARES-2100-CAN

Arbor
SKU: 80275900
Fanless Edge AI Box PC, Intel 3rd Gen Core CPU, Up to 64GB DDR5 RAM, 2xHDMI, 2x2.5GbE LAN, 2xUSB 3.2, 1xUSB 3.2 Type-C DP Alt., 1xCOM, 2xCAN FD, 1xM.2 2242 Key-M, 1xM.2 2242/3042 Key-B, 1xM.2 2230 Key-E, 9-36VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 50
Type
Fanless
CPU
СPU Generation/Family
Wildcat Lake
Socket
FCBGA1516
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, Type C DP
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB v3.x
3
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3042 B, 2242 B
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, CMOS Reset
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), RJ45 (COM), USB type C, 2xCAN (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
188 mm
Height
44 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.1 kg
Gross Weight
1.45 kg

Documentation
ARES-2100-Datasheet.pdf
