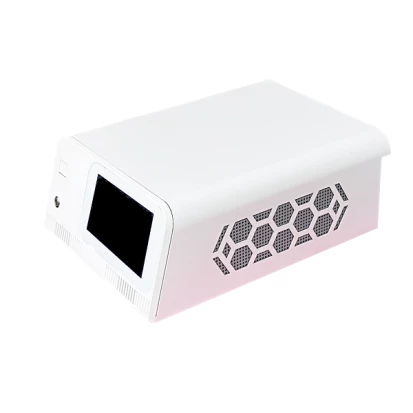

WPC-789-PSI
Wincomm
SKU: 80130500

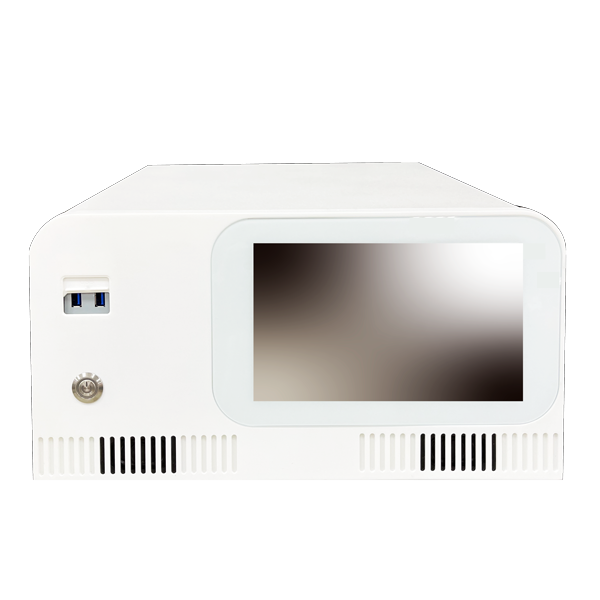

Medical Box PC, 7" 800x480 PCAP Touch Front Panel, Intel 12th Gen Core i7-12700E CPU, W680 Chipset, 16GB DDR4 RAM, 256GB M.2 SSD, DP/HDMI/VGA, 3x2.5GbE LAN, 2xCOM, 7xUSB 3.2, 1xUSB-C, 2.5" Bay, 1xM.2 Key-M, 2xPCIe x16, 2xPCIe x4, Audio, 100-240VAC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i7-12700E
Socket
LGA1700
CPU Support Type
Core i5, Core i9
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel W680
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
Yes
Default on Board Memory
16 GB
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225LM
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
8
USB v3.x
8
Drive interfaces
SATA 3
1
M.2
2
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
7
PCI Express x16
2
PCI Express x4
2
M.2
3
M.2 Form Factor
2280 M, 2230 E, 25110 M
SIM Card slots
Yes, 1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

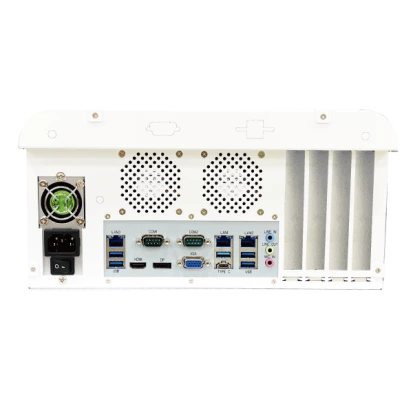

2xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 7xUSB, Audio (in/out/Mic), AC Input, Display Port, USB type C
Power Supply
Type of Power Supply
ATX
Output Power
900 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
319 mm
Height
158.4 mm
Depth
435.94 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI, EN 60601
Dimensions
Net Weight
8.4 kg
Gross Weight
9.6 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i7-12700E
Socket
LGA1700
CPU Support Type
Core i5, Core i9
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel W680
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
Yes
Default on Board Memory
16 GB
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225LM
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
8
USB v3.x
8
Drive interfaces
SATA 3
1
M.2
2
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
7
PCI Express x16
2
PCI Express x4
2
M.2
3
M.2 Form Factor
2280 M, 2230 E, 25110 M
SIM Card slots
Yes, 1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 7xUSB, Audio (in/out/Mic), AC Input, Display Port, USB type C
Power Supply
Type of Power Supply
ATX
Output Power
900 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
319 mm
Height
158.4 mm
Depth
435.94 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI, EN 60601
Dimensions
Net Weight
8.4 kg
Gross Weight
9.6 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i7-12700E
Socket
LGA1700
CPU Support Type
Core i5, Core i9
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel W680
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
Yes
Default on Board Memory
16 GB
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225LM
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
8
USB v3.x
8
Drive interfaces
SATA 3
1
M.2
2
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
7
PCI Express x16
2
PCI Express x4
2
M.2
3
M.2 Form Factor
2280 M, 2230 E, 25110 M
SIM Card slots
Yes, 1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 7xUSB, Audio (in/out/Mic), AC Input, Display Port, USB type C
Power Supply
Type of Power Supply
ATX
Output Power
900 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
319 mm
Height
158.4 mm
Depth
435.94 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI, EN 60601
Dimensions
Net Weight
8.4 kg
Gross Weight
9.6 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i7-12700E
Socket
LGA1700
CPU Support Type
Core i5, Core i9
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel W680
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
Yes
Default on Board Memory
16 GB
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225LM
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
8
USB v3.x
8
Drive interfaces
SATA 3
1
M.2
2
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
7
PCI Express x16
2
PCI Express x4
2
M.2
3
M.2 Form Factor
2280 M, 2230 E, 25110 M
SIM Card slots
Yes, 1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 7xUSB, Audio (in/out/Mic), AC Input, Display Port, USB type C
Power Supply
Type of Power Supply
ATX
Output Power
900 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
319 mm
Height
158.4 mm
Depth
435.94 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI, EN 60601
Dimensions
Net Weight
8.4 kg
Gross Weight
9.6 kg
