WPC-766E
Wincomm
SKU: 56546200

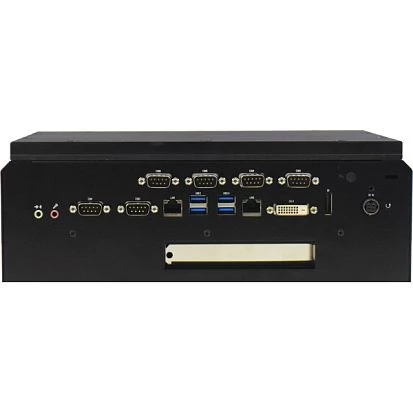

Fanless Medical Box PC with Intel Quad Core i5-6500TE 2.3G , 4G DDR4, 500GB 2.5" HDD, DP, DVI-I, 2x1000Mbps LAN, 6xRS232, 4xUSB 3.0, 2xMini PCIe,1xPCI-E x16, 1,9V-28VDC
End-of-life product
Construction
Construction Chassis
Metal Chassis
CPU
Processor Installed
Intel Core i5-6500TE
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xDIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
4
USB v3.x
3
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Extension Slots
PCI Express x16
1
Mini-PCIe/Mini Card
2
Connectors
Connectors
6xDB9, DVI-I, 2xRJ45, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
1..28 V
Dimensions and weight
Width
306.6 mm
Height
188 mm
Depth
108.6 mm
Standards and Certifications
Certifications
CE, FCC, VCCI
Medicine
UL 60601-1, EN 60601-1
Dimensions
Net Weight
3.2 kg
Gross Weight
4 kg
