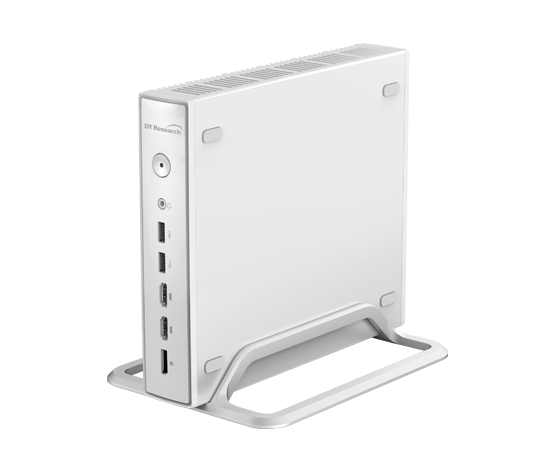

139M-Medical-Micro-PC--M
DT Research
SKU: 80138200
Fanless Medical Micro PC, Intel 10th Gen Core i5/i7/i9/Pentium CPU, 8GB (Up to 64GB) DDR4 RAM, 2xM.2 Key-M (512GB to 4TB M.2 SSD), 2xHDMI, DP, 2xGbE LAN, 4xUSB 3.0, 4xCOM, WiFi Opt., Audio, 15-20VDC-in with Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall VESA 100, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
CPU Support Type
Core i5, Core i7, Core i9, Pentium
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, 2xHDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
COM Total
4
RS-232
4
USB Total
4
USB v3.x
4
Drive interfaces
M.2
2
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
512 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
15..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
202 mm
Height
43.5 mm
Depth
232 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class B
Medicine
IEC 60601-1
Safety
CCC, IEC 62368-1
Dimensions
Net Weight
2.1 kg
Gross Weight
2.7 kg
